Glade Lane Middlesex
NGR: TQ140796 Maps: Google  Bing (Ord Surv)   Site Height: 27m      Structure Height: 42m
Digital TV:
National Radio:
Local Radio: Desi Radio: 1602 kHz   Lyca Gold: 1035 kHz   Sunrise Radio: 972 kHz
Digital Radio:
Comments:

Show historic services

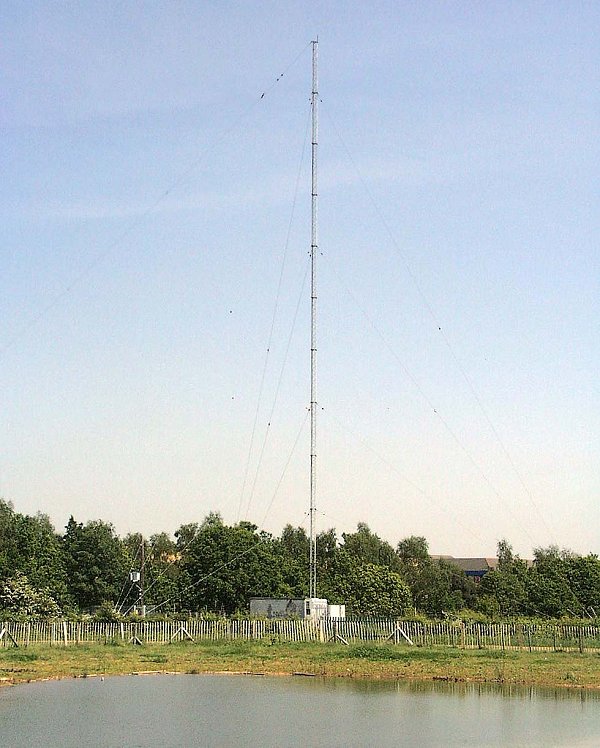

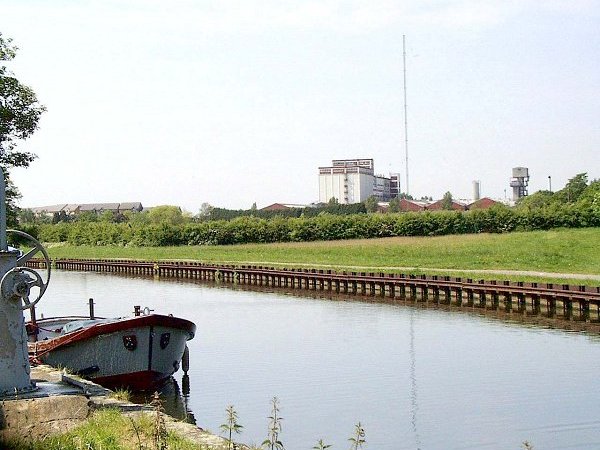

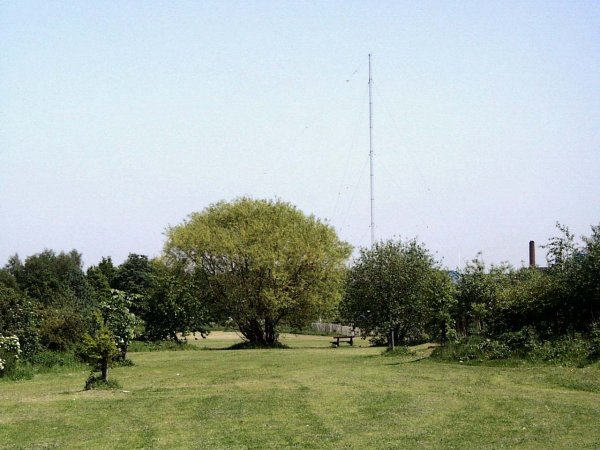

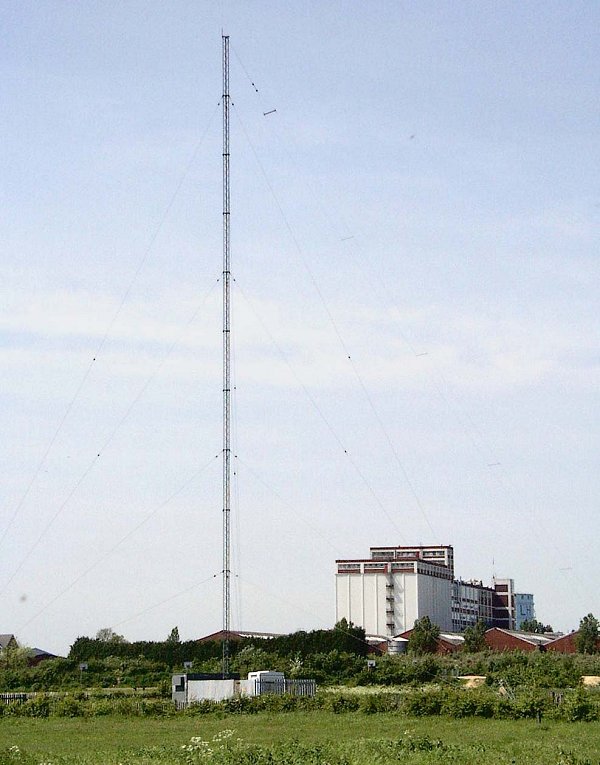

The Glade Lane mast is located at the end of a Park next to the Grand Union Canal just on the edge of Southall. The site was originally built for Southall's Sunrise Radio which launched on the 5-Nov-1989 on
1413 kHz. In 1994 Sunrise Radio took over the high powered BBC GLR AM slot at Brookmans Park on
1458 kHz, and Glade Lane closed. On 5-Jan-1998 the site was brought back into use transmitting Liberty Radio on 972 kHz. Glade Lane supplemented Liberty's existing transmitter site at Lea Bridge Road, bringing a stronger signal to West London. A second service, Desi Radio, was added on 1602 kHz from 10-May-2002 and a third service was added on 4-Apr-2019 when Lyca Dil Se transferred its 1035 kHz transmitter from
Crystal Palace.

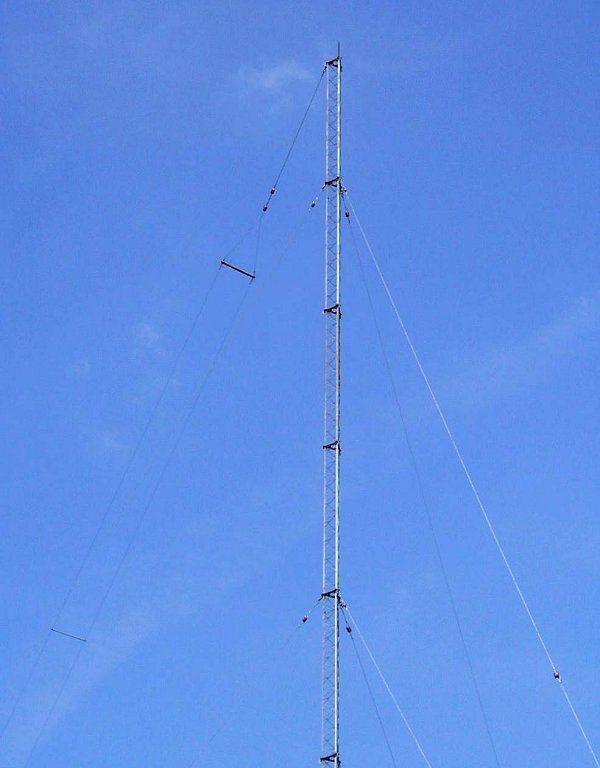

Despite the mast configuration, Glade Lane has a omni-directional radiation pattern under the present license.

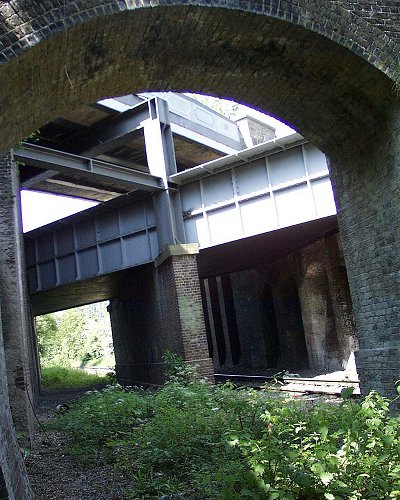

The mast is adjacent to Brunel's well known "Three Bridges"
where road, canal and railway cross at the same point.

Brookmans Park | Crystal Palace | Lea Bridge Road

Please let us know if the photographs for this site need updating or improved detail.
To do so, click here.
