DOUGLAS (CARNANE)

Photos by Ed Rixon and Juan Turner Page last updated: 2013-06-24

Post-DSO, January 2013

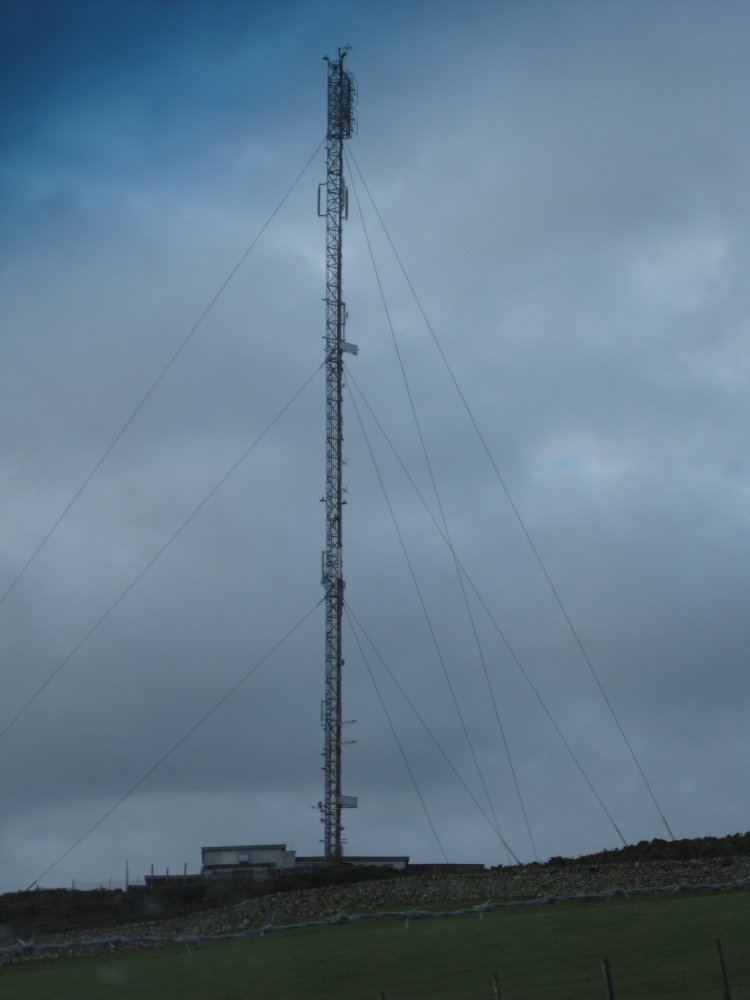

A general site view


The top of the mast - Classic FM Siras at the very top (77 m agl) with the Alan Dick panel array below (73.5 m agl). The Alan-Dick array is shared between Manx Radio and the BBC national FM networks, and also contains the interleaved DAB aerials.

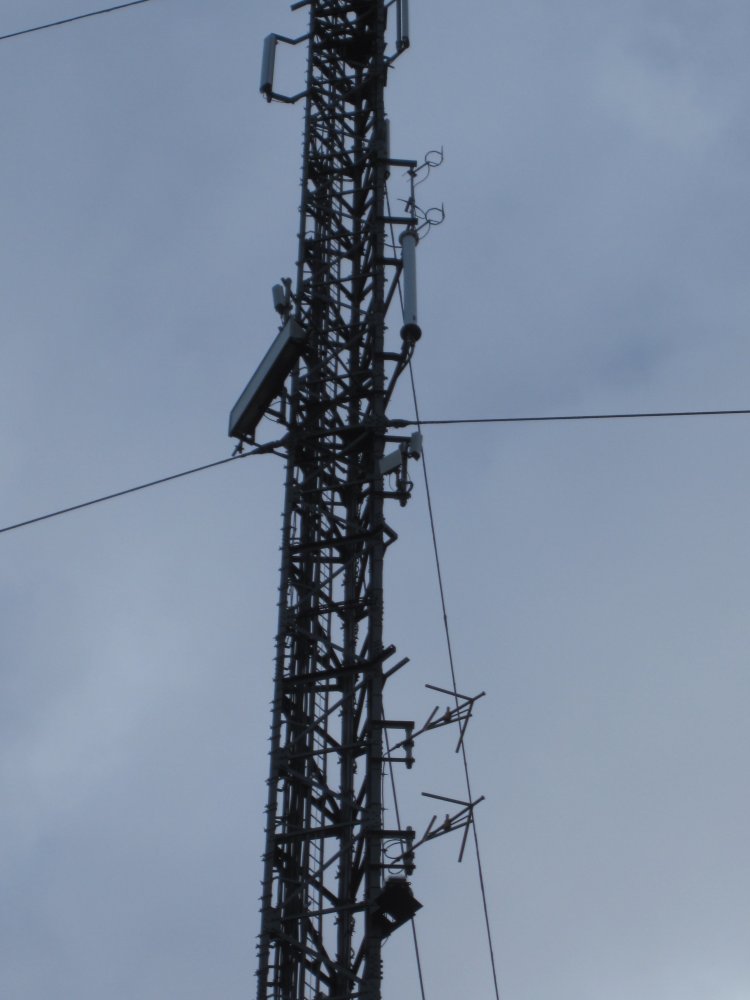

Post-DSO TV antenna, also showing the Energy FM array (CTE antennae) above at 52m and 3FM (Siras) below at 40m.

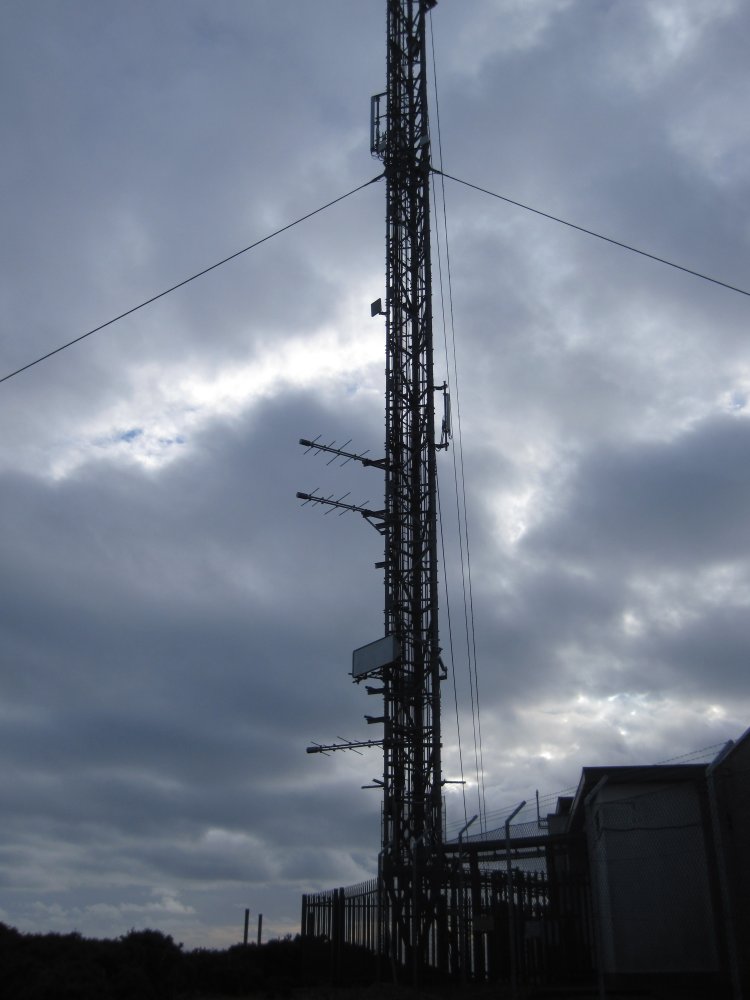

Receive antennas for FM national network - the upper pair of logs point at Sandale (13 m agl) and the lower single log at Holme Moss (RBS, 4 m agl).


From inside the site compound at dusk


Above - photo from Juan Turner

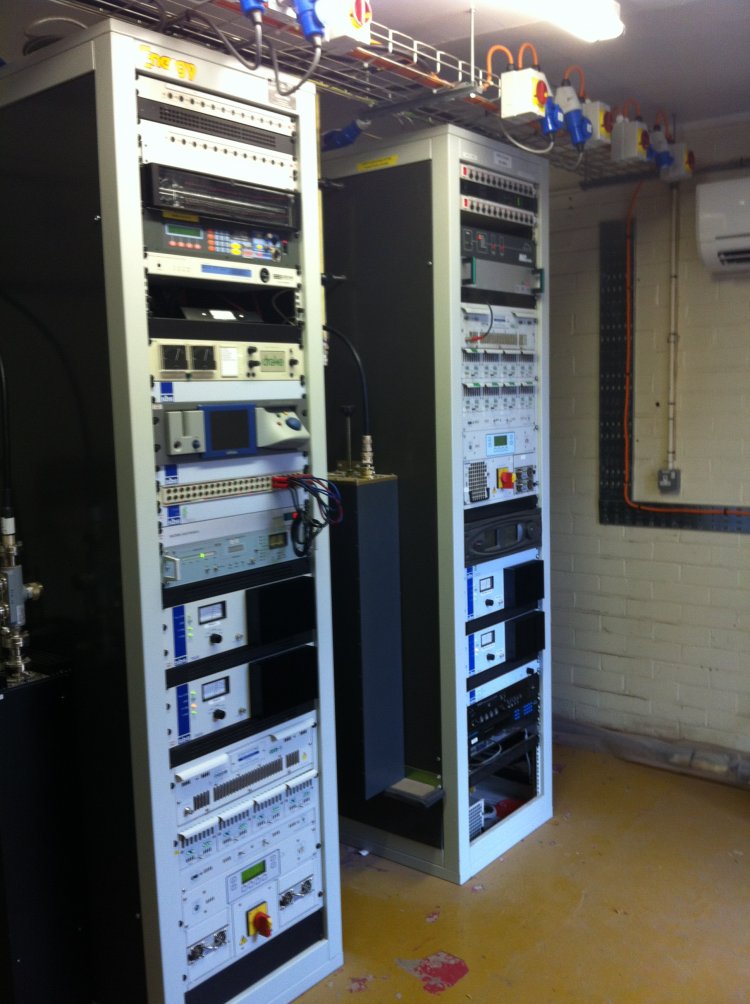

The two 'sister' systems within the other users room at Arqiva (Former BBC CCI NGW site)

Energy FM (98.6) (on the left)
3FM (105) (on the Right)

Both Maintained by Energy Communications Ltd







Douglas (Carnane) index

This site is now included in the Update List for the following reason:
Detail : DSO changes

Please let us know if you think there is another reason photos should be updated.
