SUTTON
| Photos by Martin Brown | Page last updated: 2018-02-12 |
| The vertically polarised transmit aerial was replaced at Sutton on the 30th November 2017 in preparation for 700 MHz band clearance. Sutton is expected to move from UHF channels 59/55/50 to 33/36/48 on the 21st March 2018. |

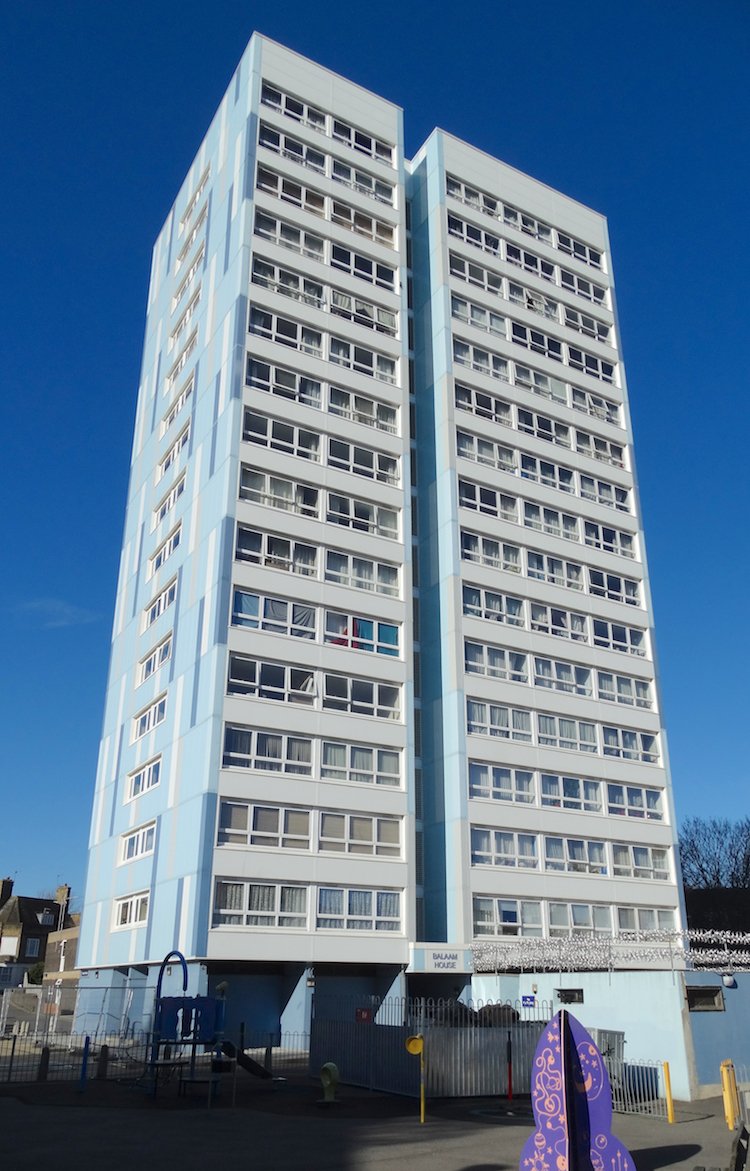

| Balaam House. Re-clad since Robert visited in 2007. |

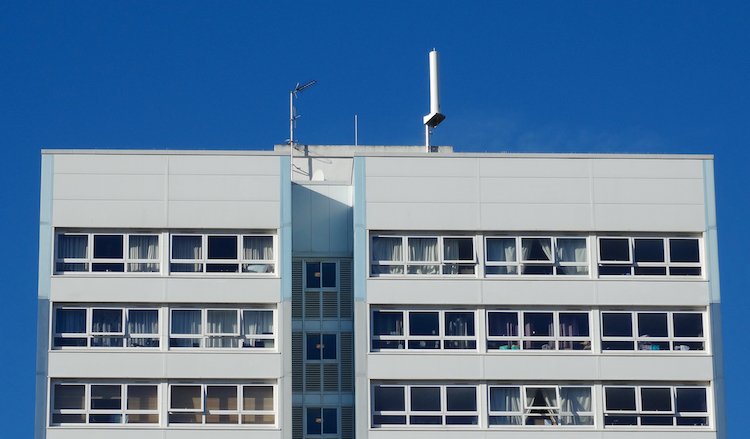

| The new vertically polarised transmit aerial with the Crystal Palace receive log periodic below. The Tx aerial faces roughly northeast. |

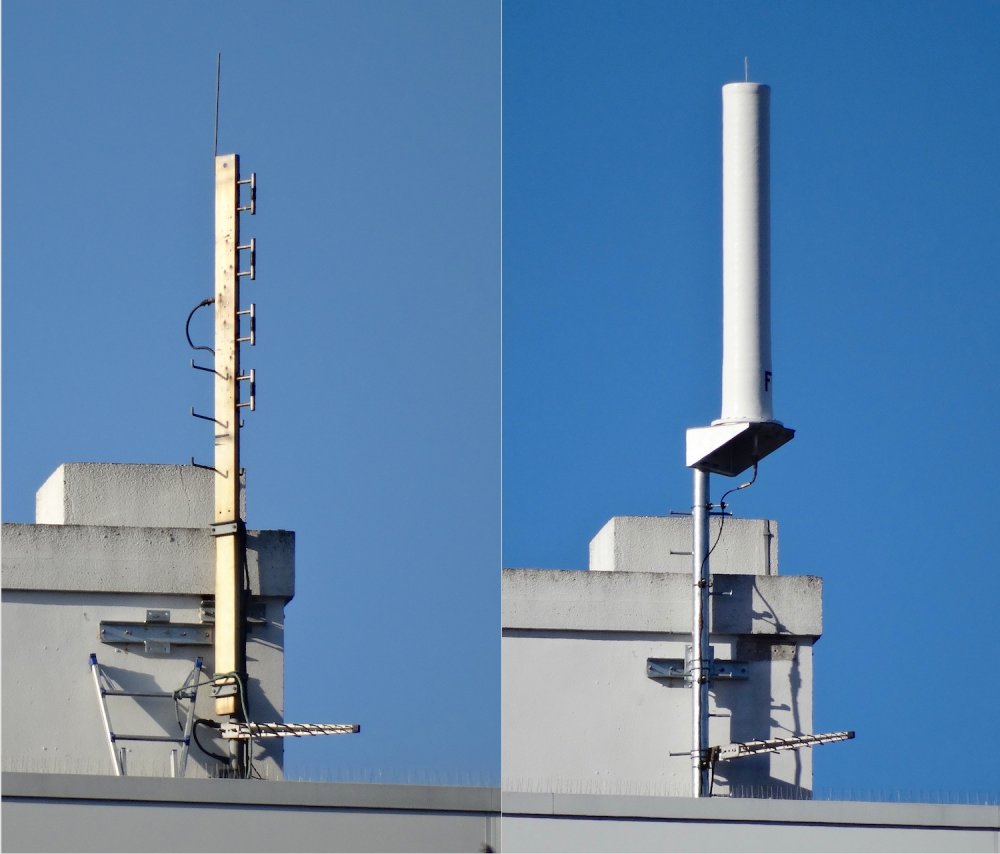

| Before on the left. After on the right. |

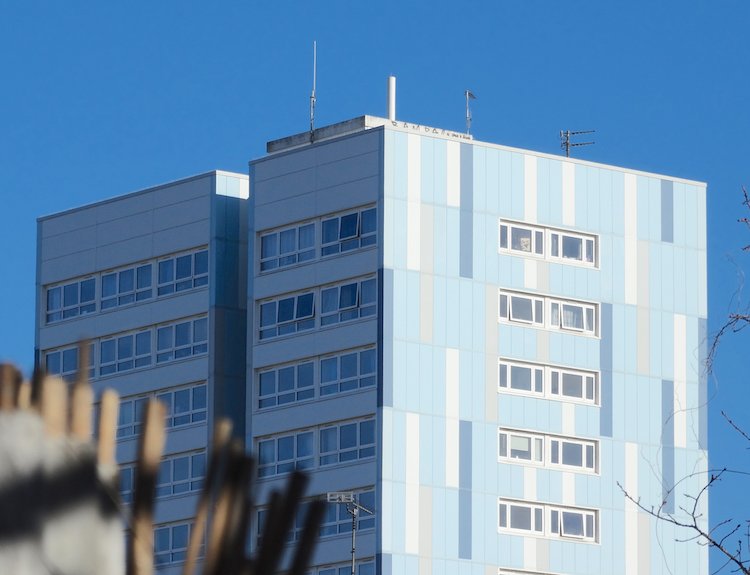

| Round the other side the two horizontal transmit logs can be seen. |

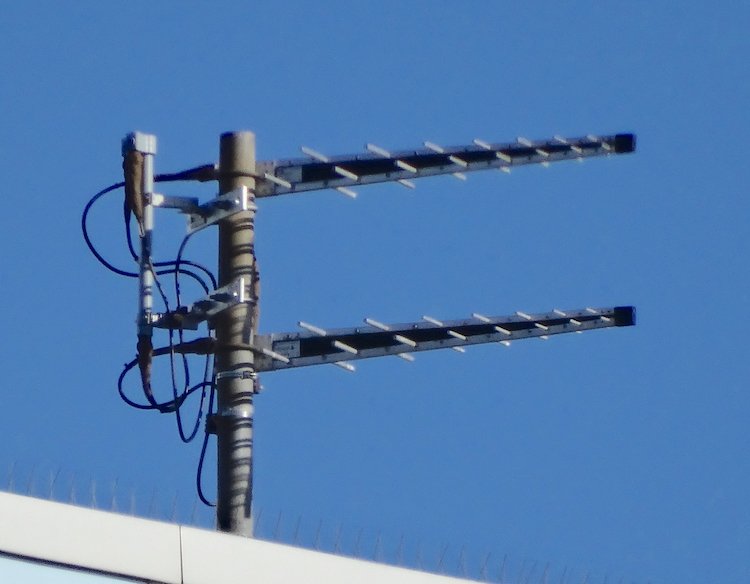

| The horizontally polarised transmit log periodics pointing roughly southeast. These look quite shiny, as does the bracket with the power divider, so I suspect that these have been replaced as well. |
| |
