DUNURE
| Photos by Martin Brown | Page last updated: 2025-07-14 |
| At DSO in May 2011, the RBL source at Dunure was changed from Girvan to Kirkoswald. I calculate that the difference in pointing angle between the two sites is only one degree but Kirkoswald is closer at 7.7 km compared to 17.3 km to Girvan. It seems likely that the panel receive aerial was added at around that time. |
| The new panel receive aerial with the original twin logs above. |

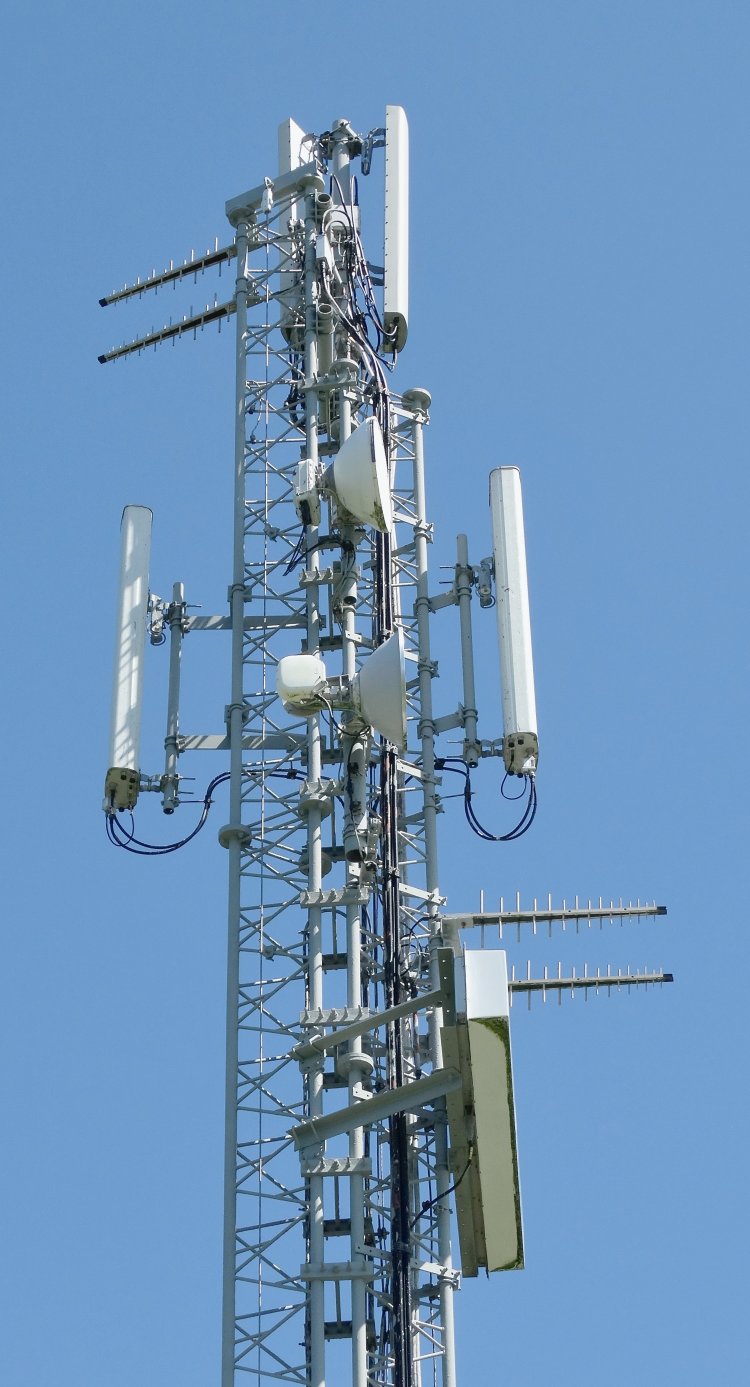

| No change to the transmit aerials. |
| 15231 |
| |
