MILLBURN MUIR
| Photos by Jack Richardson | Page last updated: 2025-07-21 |

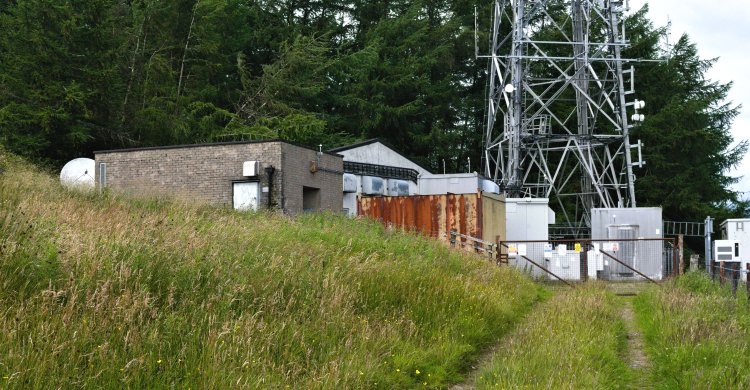

| Driven past this site loads of times on the A82, been meaning to make a stop for a while. A warm July day and some time made that possible. Parked at the Vale of Leven cemetery and walked up the track. No changes since David's 2018 photos, but some updated photos for the gallery. |

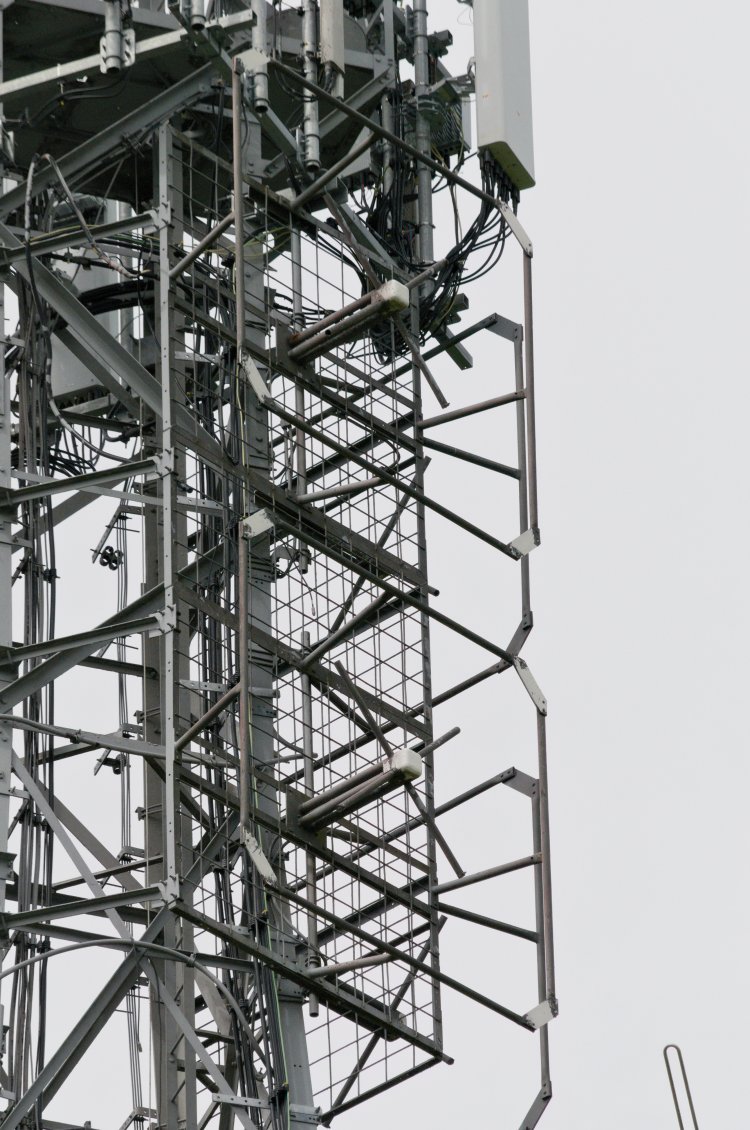

| At 41m, these are the BBC FM antennas. Two Alan Dick Crossbow panels facing south east and north east. |

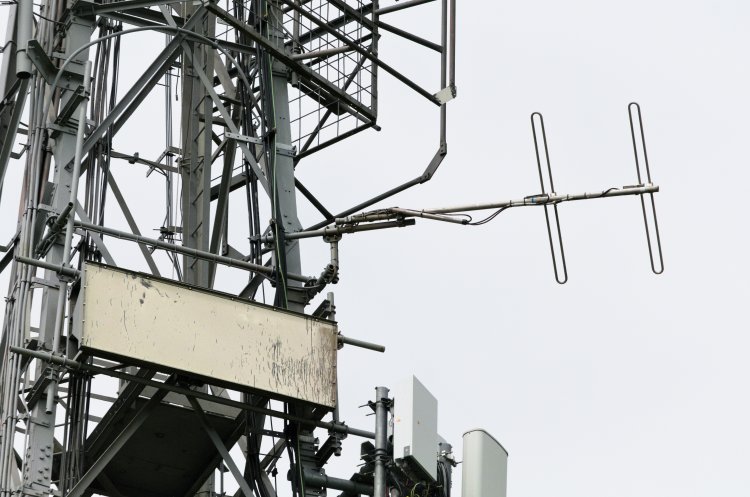

| Upper Darvel trough and at 36m the Heart antenna. |

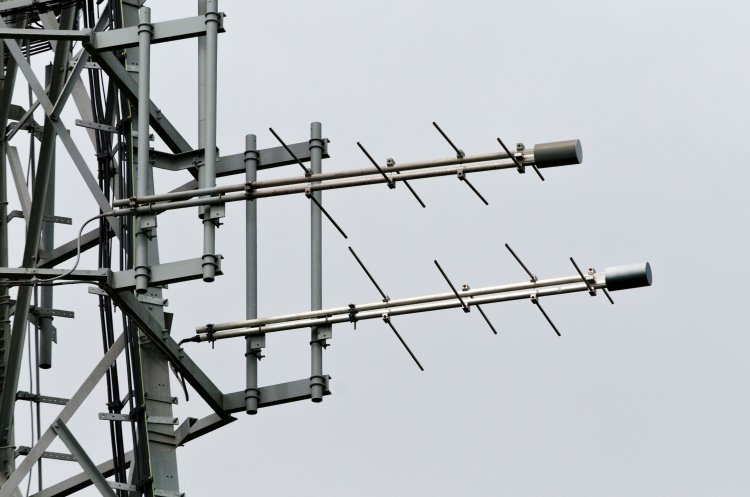

| Black Hill FM receive. I believe Heart is line fed to this site as the processing is different, Tx is on 100.0 MHz, Black Hill on 100.3 MHz, too close to RBL. |

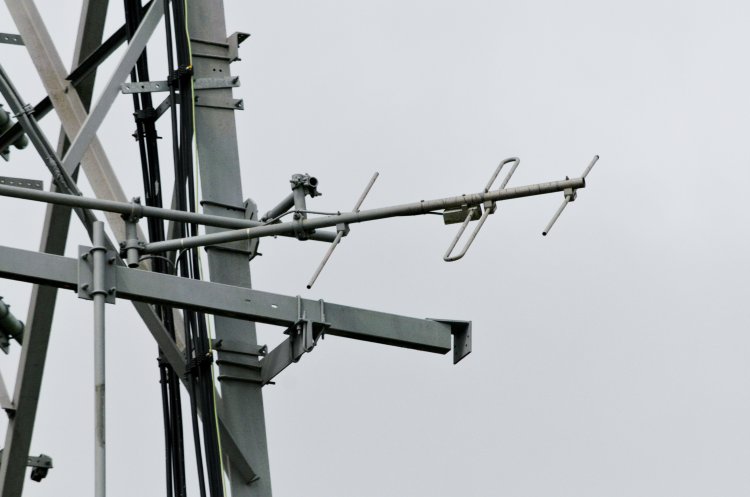

| At 25m the Clyde 1 antenna. A slant polarised 3 element Yagi. |

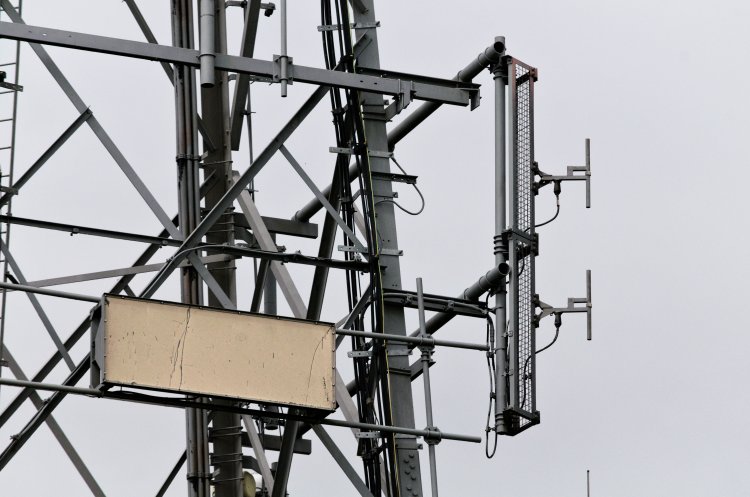

| Lower Darvel trough and at 20m the DAB antennas. |
| Looking towards Dumbarton and the River Clyde. |
| Balloch and the southern Highlands |
| |
