Photos by James Towill Page last updated: 2014-10-01
Millburn Muir West Dunbartonshire
NGR: NS378796 Maps: Google  Bing (Ord Surv) Site Height: 152m      Structure Height: 47.2m
Digital TV: BBC A: 29 D3&4: 31 BBC B: 37
BBC Radio: Radio 1: 97.9 Radio 2: 88.3 Radio 3: 90.5 Radio 4: 104.1
  R. Scotland: 92.7
Ind. National Radio:
Ind. Local Radio: Clyde 1: 97.0  Heart FM (Scotland): 100.0
Digital Radio: BBC National: 12B        Glasgow: 11C
Comments: Millburn Muir is a TV relay of Darvel and a network FM relay of Black Hill. Pre B700 allocations: 42/45/39.

Millburn Muir was a late addition to the 405-line transmitter network with BBC 1, VHF channel 1 entering service on 7th April 1969. BBC FM radio was added in March 1975 and UHF TV on 3 channels from 13th June 1975. Channel 4 was added in November 1983. BBC 1, 405-lines closed in October 1983.

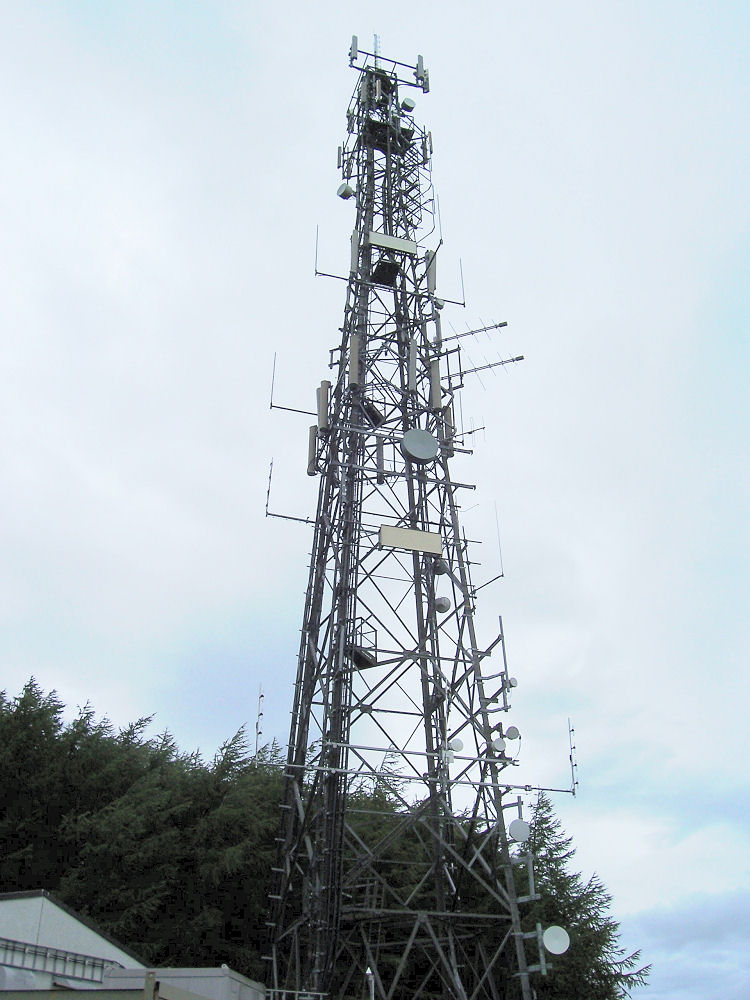

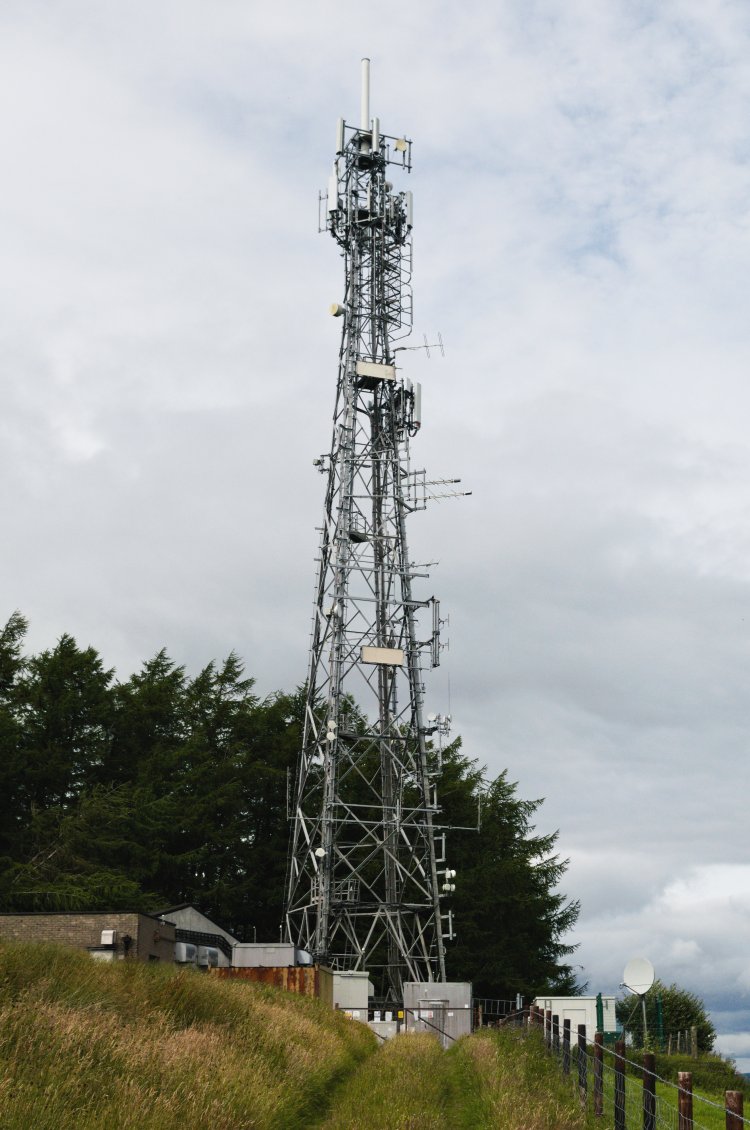

The original tower was replaced for the re-engineering of BBC FM radio for mixed polarisation which entered service in December 1990. Radio's 1 & 4 were added on 10th December 1991. Both Clyde 1 and Real Radio (now Heart FM), went into service on 6th June 2007. BBC DAB was added on 15th September 2010. DSO was on the 11th and 25th May 2011.

This site is now included in the Update List for the following reason:
Detail : DAB, FM & tv tx antennas

Please let us know if you think there is another reason photos should be updated.
