THE TRANSMISSION GALLERY

Photos by Rob Shufflebotham Page last updated: 2021-12-05
Blackwaterfoot North Ayrshire
NGR: NR912291 Maps: Google  Bing (Ord Surv)   Site Height: 50m      Structure Height:
Digital TV: BBC A: 43   D3&4: 46   BBC B: 40
National Radio:
Local Radio:
Digital Radio:
Comments: Blackwaterfoot is a relay of Darvel (via Campbeltown). Pre B700 allocations: 43/46/50

Show historic services

June 2015

mb21 - Refreshing the places others can't reach! Something like that anyway... Blackwaterfoot, on the Isle of Arran, provides TV services to a small valley shielded from sites on the mainland. Most of Arran receives its TV services from a variety of sites on the mainland. Darvel and Black Hill can be received along much of the east coast and Divis on the west coast. The relays at Claonaig, Carradale, Campbeltown, Rosneath and West Kilbride also provide a service to various parts of the island. Blackwaterfoot has the dubious honour of being the only broadcast site on Arran!

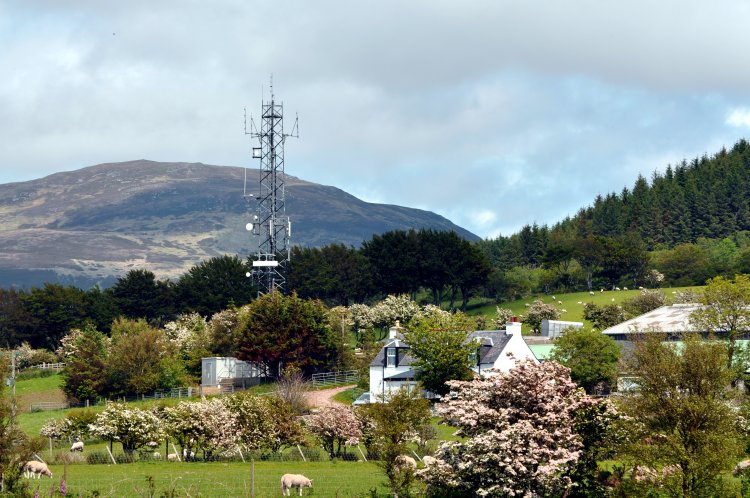

The site, in its surroundings

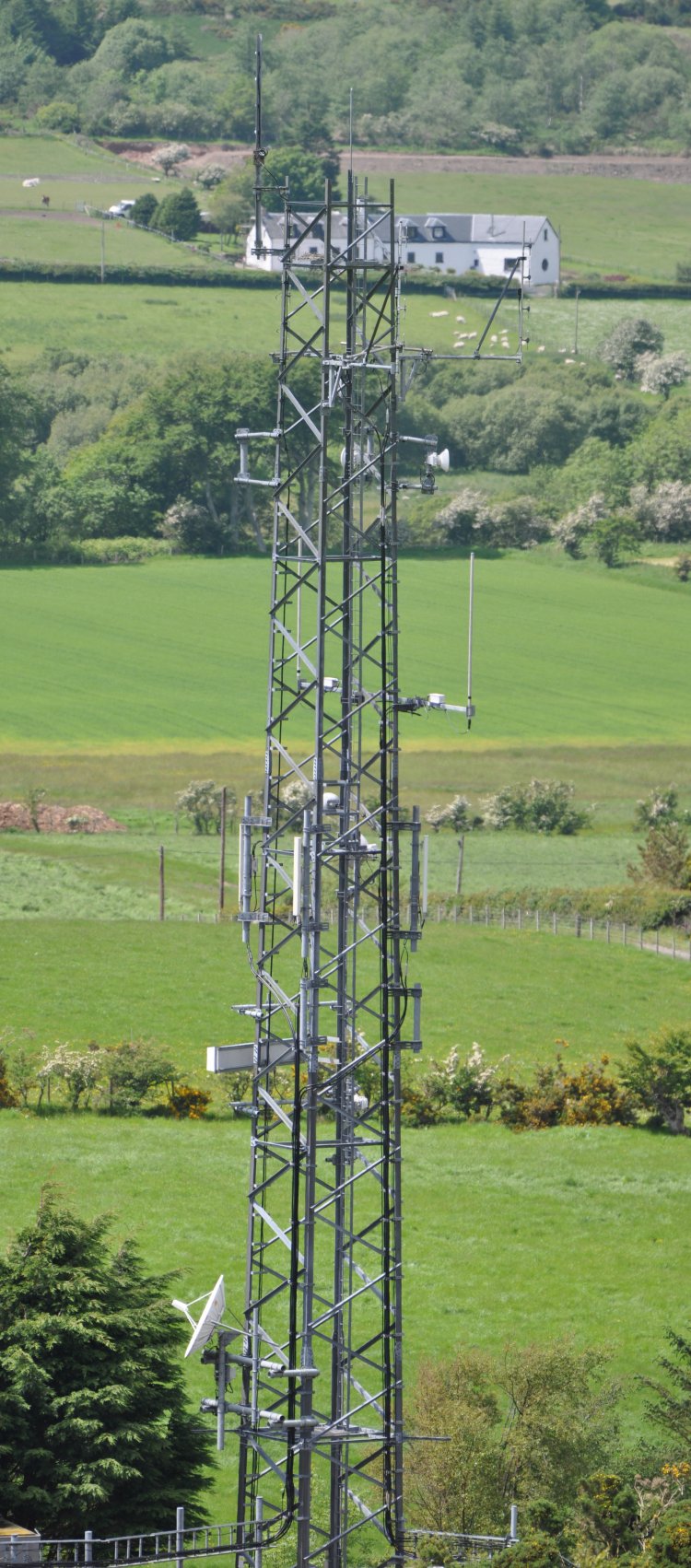

A more detailed view, from behind, showing the receive panel on Campbeltown near the base, with telemetry dish below, and the 4 bowtie stack at the top

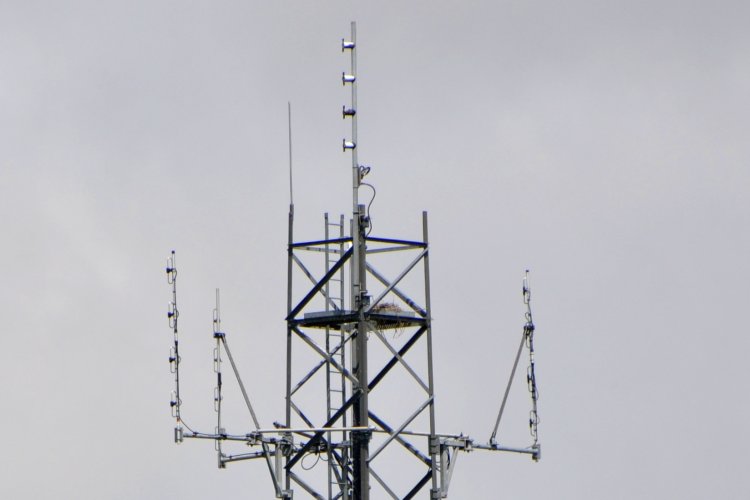

The bowtie stack in detail, complete with birds nest below!

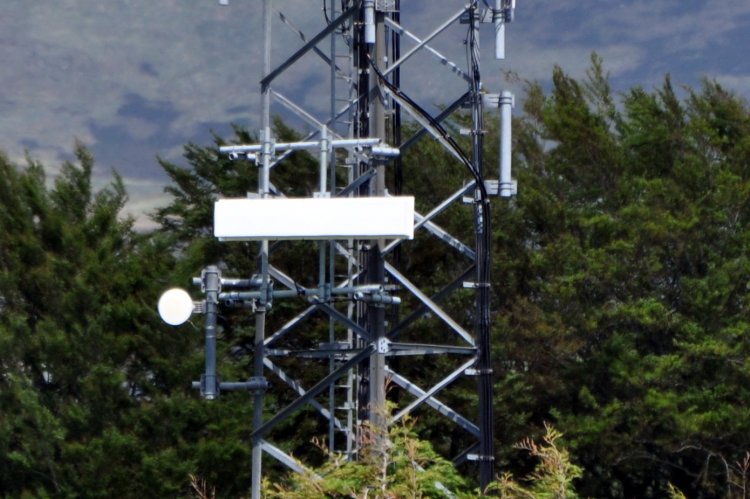

The receive panel - we believe this to be a Sira UTV-08: vertically-polarised yet horizontally-shaped

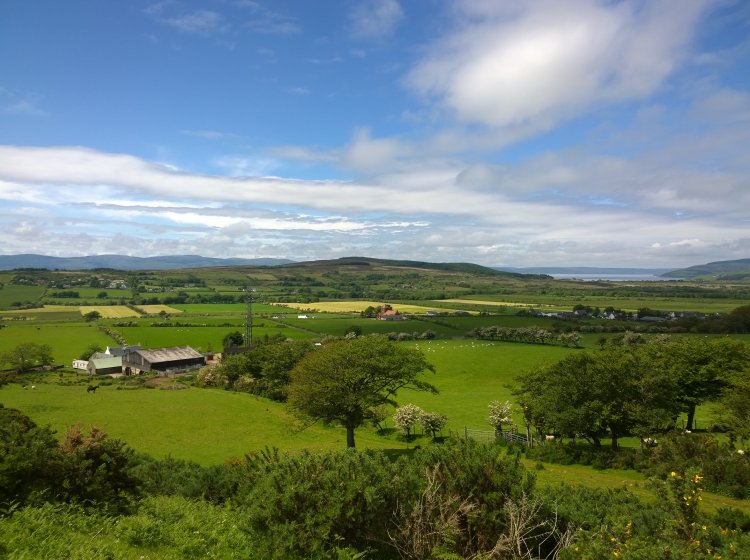

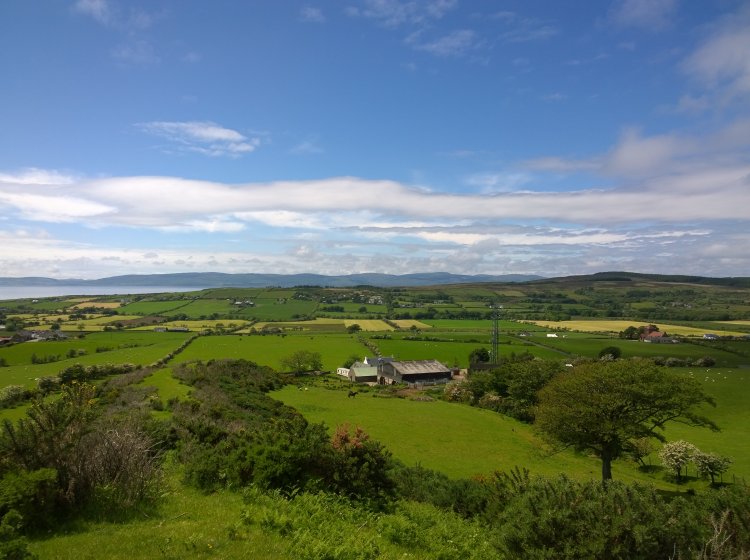

The site sits in the beautiful Arran countryside

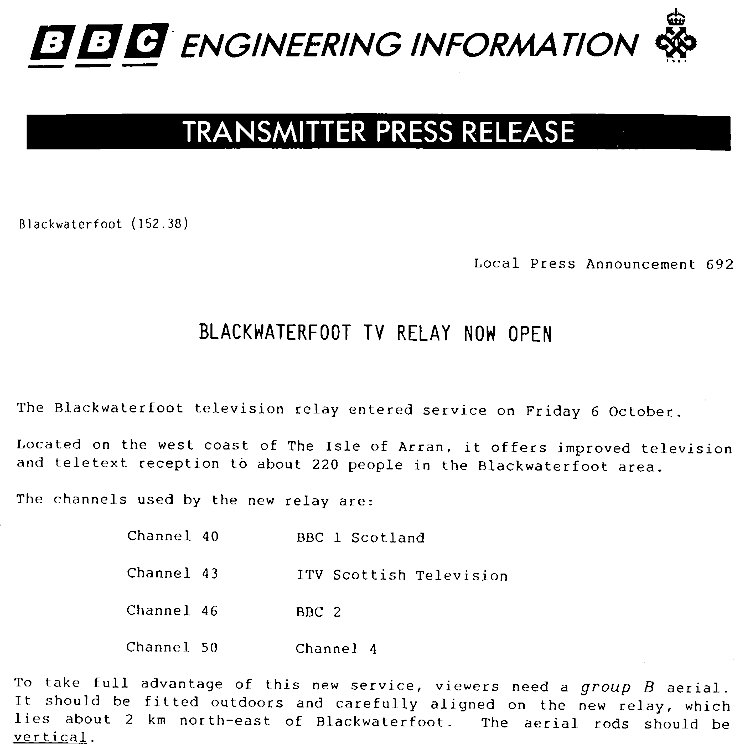

The year was 1989

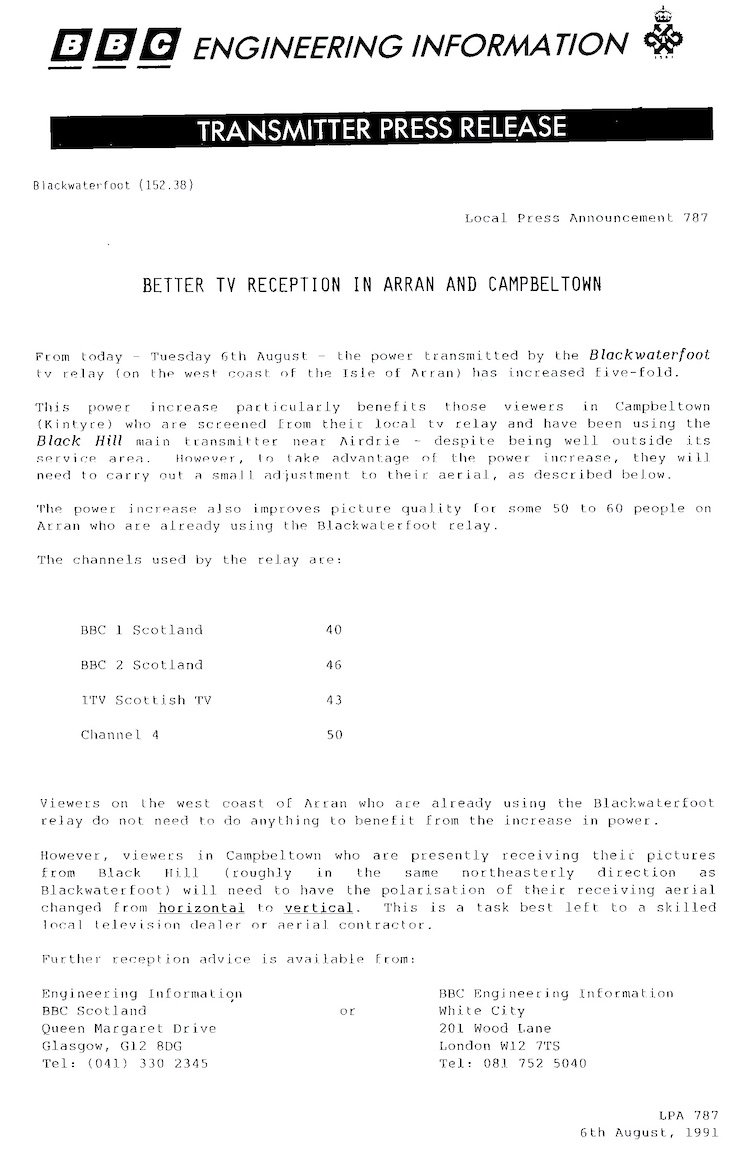

The ERP was increased from 8W to 40W.

Black Hill A | Campbeltown | Carradale | Claonaig | Darvel | Rosneath | West Kilbride

Please let us know if the photographs for this site need updating or improved detail.
To do so, click here.
