THE TRANSMISSION GALLERY

Photos by Allan Poole Page last updated: 2012-07-30
Tomich Highland
NGR: NH306276 Maps: Google  Bing (Ord Surv) Site Height: 122m      Structure Height: 17m
Digital TV: BBC A: 27 D3&4: 24 BBC B: 21
BBC Radio:

Ind. National Radio:
Ind. Local Radio:
Digital Radio:
Comments: Tomich is a relay of Rosemarkie (via Tomich Link)

This is a split site with the mast located approx 100m up the slope from the equipment cabin.

Another unusual feature is the use of stays on a relatively short structure. Allan notes that these were originally anchored directly into the ground but are now fixed to concrete blocks

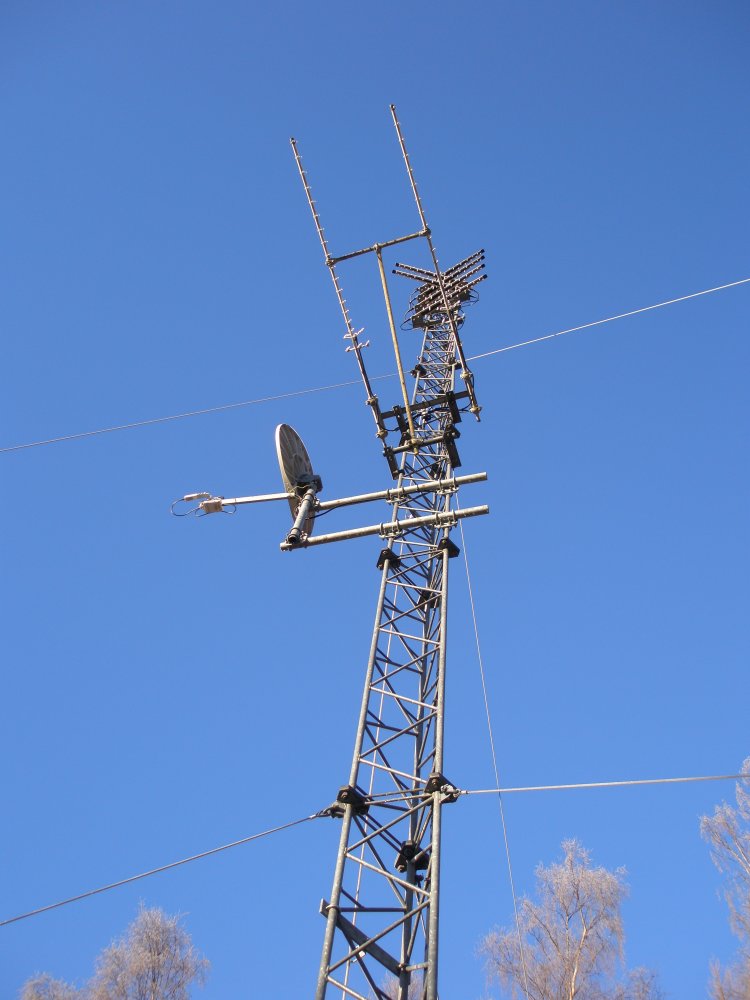

Antenna Post DSO works 20/11/2011.

Transmission is from the 4+2 arrangement of logs at the top of the structure, with the two yagis receiving the nearby Tomich Link.

The VSAT dish is for telemetry purposes and was added for DSO, as with a number of sites



Tomich Link

Please let us know if the photographs for this site need updating or improved detail.
To do so, click here.
