THE TRANSMISSION GALLERY

Photos by Lewis Walker Page last updated: 2016-04-30
Moffat North Borders
NGR: NT065062 Maps: Google  Streetmaps (Ord Surv)   Site Height: 270m      Structure Height:
Digital TV:
National Radio:
Local Radio:
Digital Radio: BBC National: 12B
Comments:

Show historic services

April 2016

BBC DAB entered service on 11th December 2014 at Moffat North.

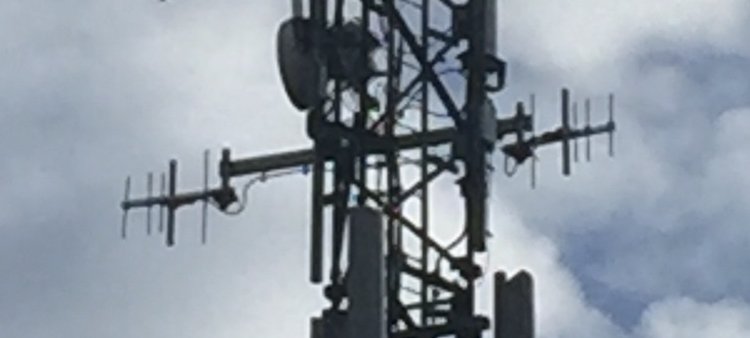

Two, 5 element band III Yagis pointing south east and north west at the 26.5m level for DAB transmit.

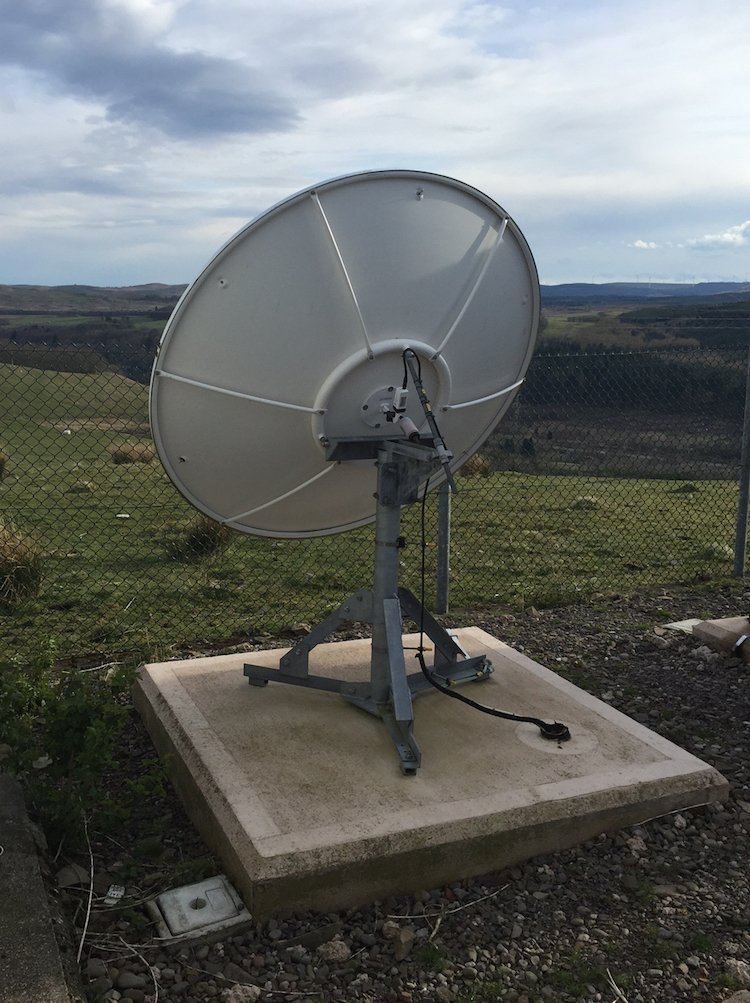

DAB satellite receive dish.

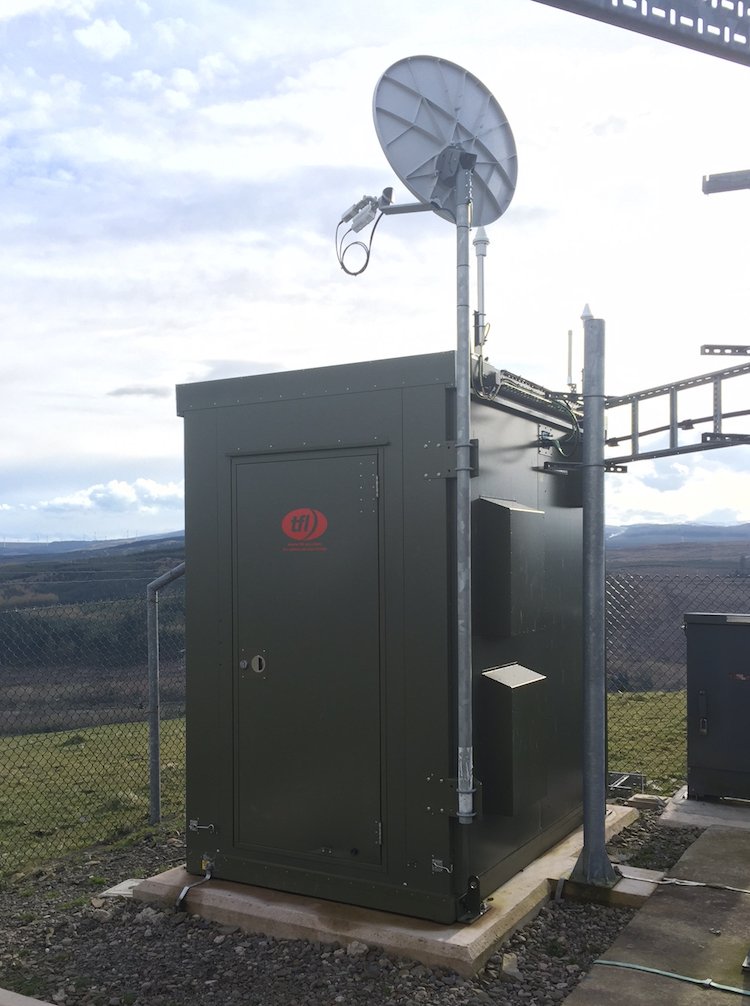

DAB transmitter cabin with GPS cone aerials and a satellite telemetry dish.



Moffat

Please let us know if the photographs for this site need updating or improved detail.
To do so, click here.
