THE TRANSMISSION GALLERY

Photos by David Neale Page last updated: 2018-10-21
Moffat Dumfries and Galloway
NGR: NT077050 Maps: Google  Bing (Ord Surv) Site Height:       Structure Height: 17m
Digital TV: BBC A: 45 D3&4: 42 BBC B: 39
BBC Radio:

Ind. National Radio:
Ind. Local Radio:
Digital Radio:
Comments: Moffat is a relay of Caldbeck. Pre B700 allocations: 45/42/49.

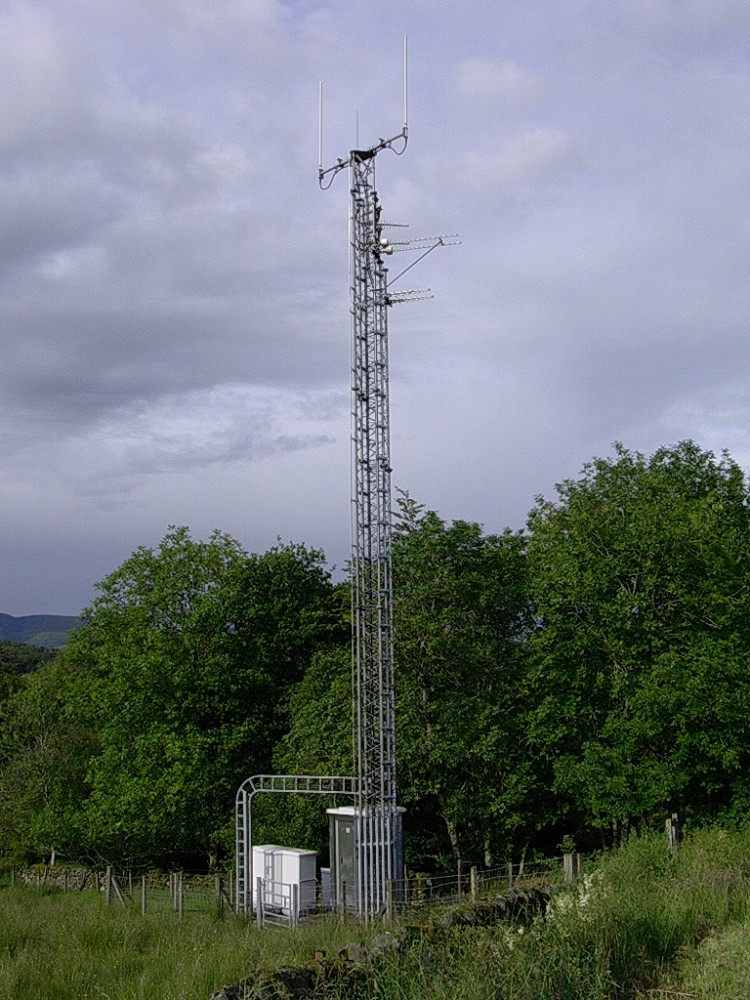

The Moffat relay is a tripole and shadow next to the golf course. (It should not be confused with the much bigger busier tower high up at the end of the same road which is an Arqiva site share tower, Moffat North). Moffat was originally an IBA landlord site which entered service in October 1986 as a relay of Sandale for BBC1 Scotland and Caldbeck for BBC2/Border ITV/Ch4. BBC2 was changed to relay BBC2 Scotland from Sandale when this service commenced in May 1992.

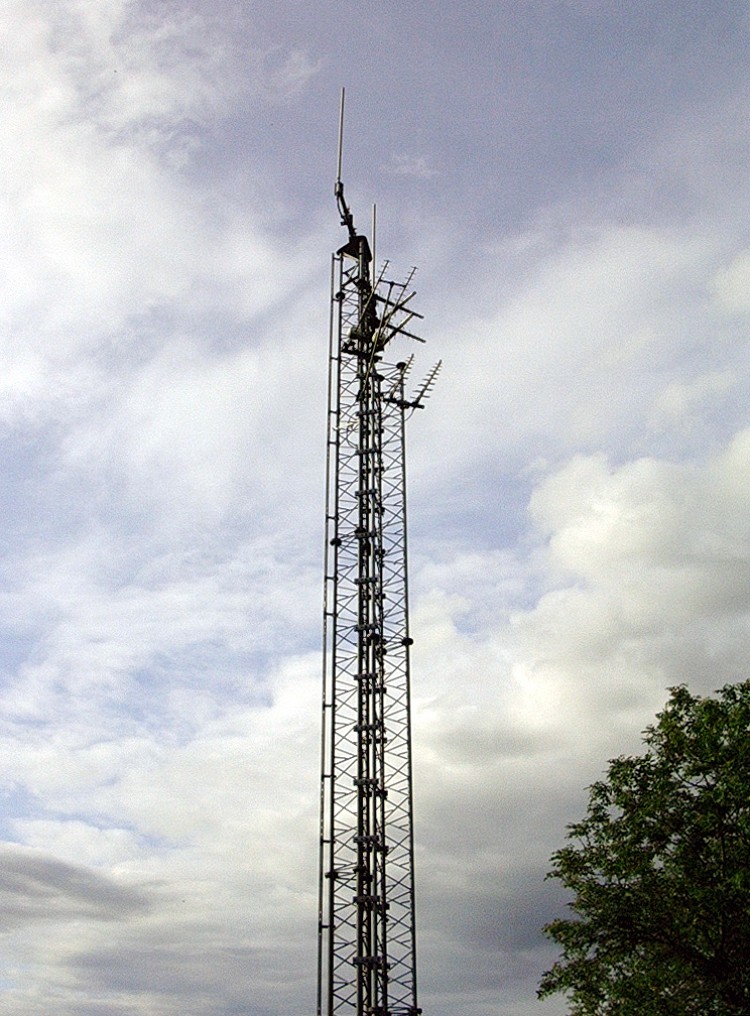

The transmit aerials comprise two tiers of crossed vertical log periodics. I suspect that the twin horizontal log periodics were the original Caldbeck/Sandale receive aerials, and the twin Yagis at the top were added to receive BBC2 Scotland from Sandale, which originally transmitted at only 20 kW ERP on ch 67.

Moffat North

Please let us know if the photographs for this site need updating or improved detail.
To do so, click here.
