THE TRANSMISSION GALLERY

Photos by Clem Andrews Page last updated: 2019-10-25
Gillingham MOT Kent
NGR: TQ795656 Maps: Google  Bing (Ord Surv) Site Height:       Structure Height:
Digital TV: BBC A: 32 D3&4: 34 BBC B: 45
BBC Radio:

Ind. National Radio:
Ind. Local Radio:
Digital Radio:
Comments:

August 2019

Gillingham MOT is a new UHF Tx site, built as part of the 700 MHz band clearance program. The tower sits in the corner of the yard of the Gillingham branch of the Driver And Vehicle Standards Agency. It entered service on 11th July 2019 and forms an SFN with Bluebell Hill for the three PSB multiplexes. Transmissions are horizontally polarised.

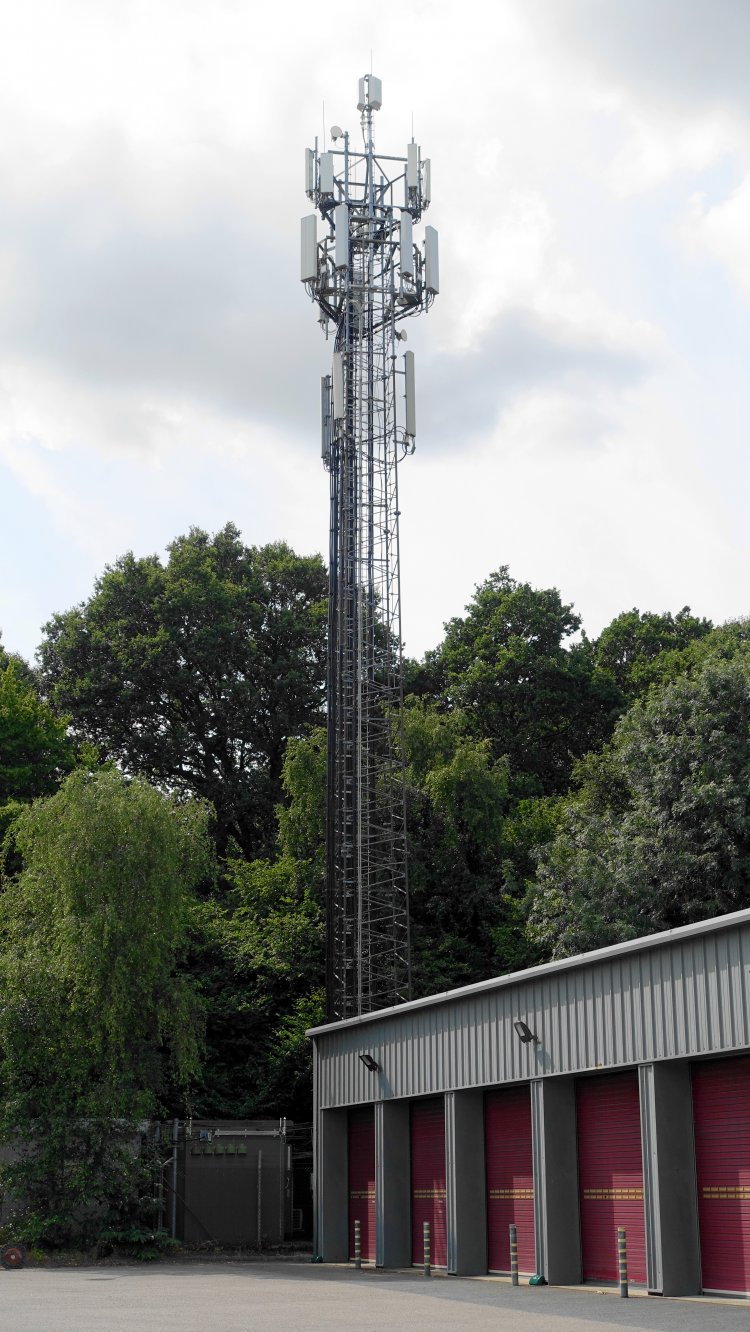

Mast and transmission cabin with two GPS antenna attached.

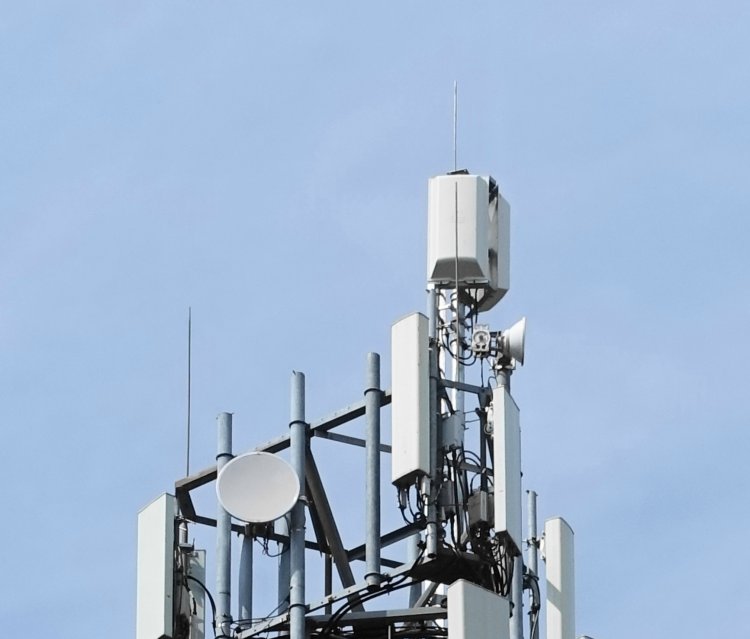

Assumed the two top panels are for TV transmission. They appear to face roughly north and southeast. No receive antenna visible as this site is line fed.

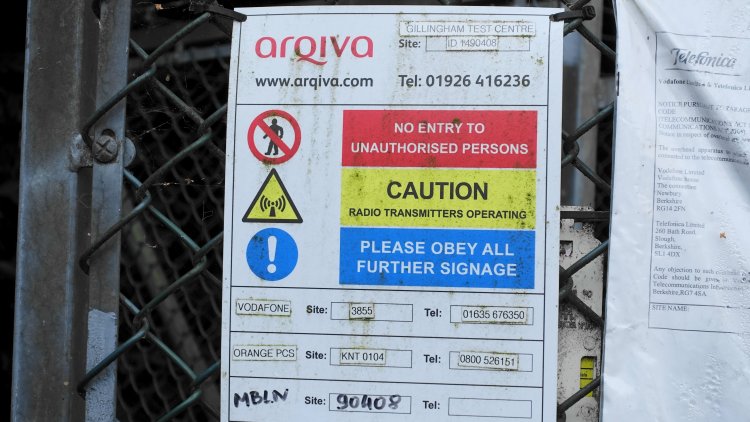

Attached to the transmission station gate.

Bluebell Hill A | Sittingbourne (Stockers Hill)

Please let us know if the photographs for this site need updating or improved detail.
To do so, click here.
