THE TRANSMISSION GALLERY

Photos by www.newrywan.org and Jordy Lyons Page last updated: 2017-01-21
Camlough Co. Armagh
NGR: J055247 Maps: Google  Bing (Ord Surv) Site Height:       Structure Height: 45m
Digital TV: BBC A: 59 D3&4: 55 BBC B: 50
BBC Radio: Radio 1: 98.3 Radio 2: 88.7 Radio 3: 90.9 Radio 4: 104.6
  Radio Ulster: 93.1
Ind. National Radio:
Ind. Local Radio: Downtown Radio: 103.1  Q Newry & Mourne: 100.5
Digital Radio: BBC National: 12B        Digital One: 11D        Northern Ireland: 12D
Comments: Camlough is a TV and network FM relay of Divis

The shots of Camlough (below) have been taken from distance due to the fact that the site is inside the perimeter of an army base there on the mountain. There seems to be a variety of towers on this site used by both civilian services and military.

Camlough was originally a BBC landlord site which entered service in March 1995 with BBC FM radio. Downtown Radio was added in April 1997 and Five FM in December 2006. This site was a late addition to the UHF TV network in the late 1990's.




Since the photos above were taken the army has vacated the site leaving the mountain free to be
explored...




The two aerials on the left, at the bottom of this picture transmit Downtown Radio (103.1 MHz).

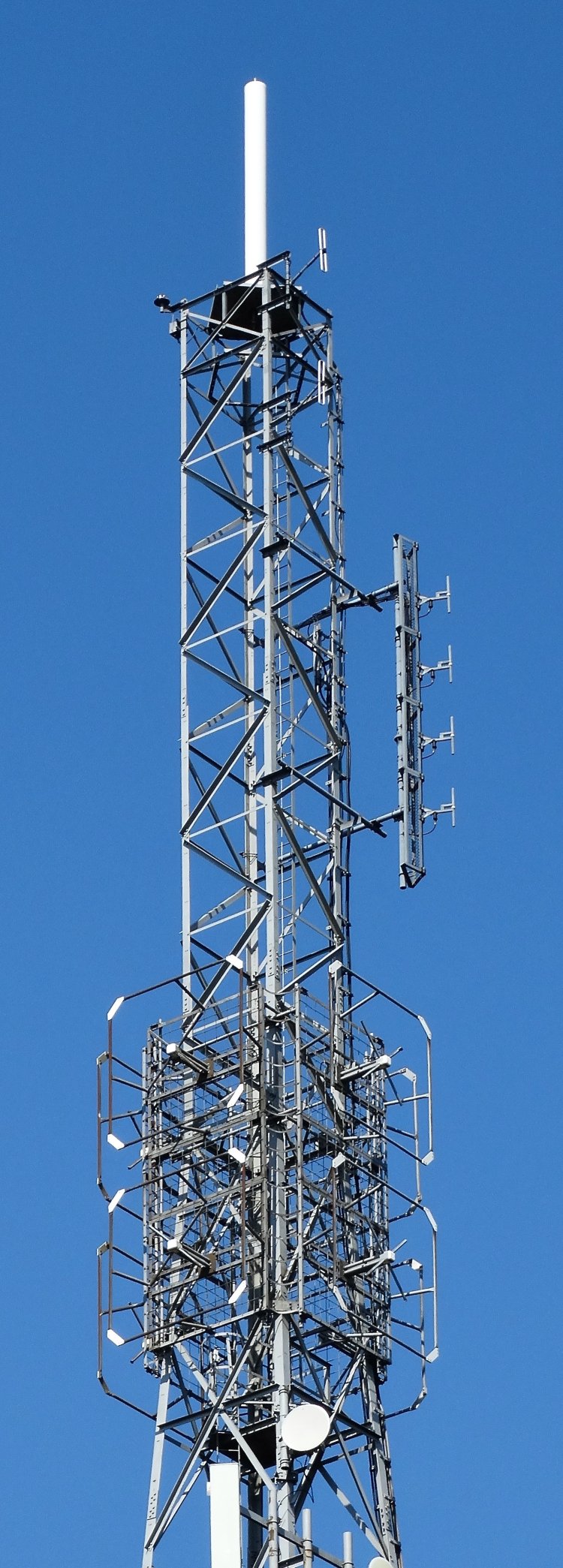

UHF transmit at the top with two tiers of Alan Dick & Co
band II circularly polarised panels below. These transmit
all the BBC and Five FM radio services.


Band II and UHF log-periodics receiving transmissions from Divis.
Above, the lower band II Downtown Radio Tx aerial.





This site is now included in the Update List for the following reason:
DAB facility added

Please let us know if you think there is another reason photos should be updated.
To do so, click here.
