FFESTINIOG
| Photos by Martin Brown | Page last updated: 2024-07-06 |
| The UHF receive trough aerial at Ffestiniog was replaced in September 2018 in preparation for the 700 MHz band clearance channel changes at the parent station Llandecwyn. |

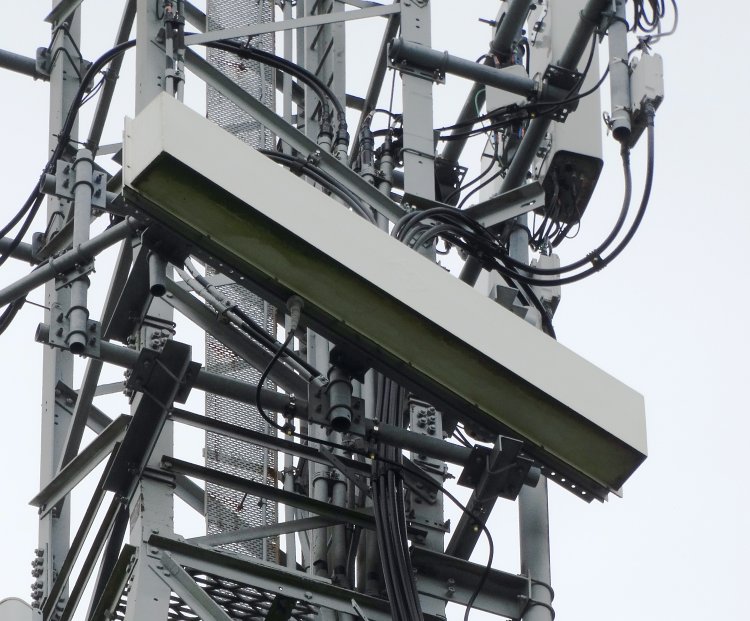

| The new UHF panel receive aerial. |

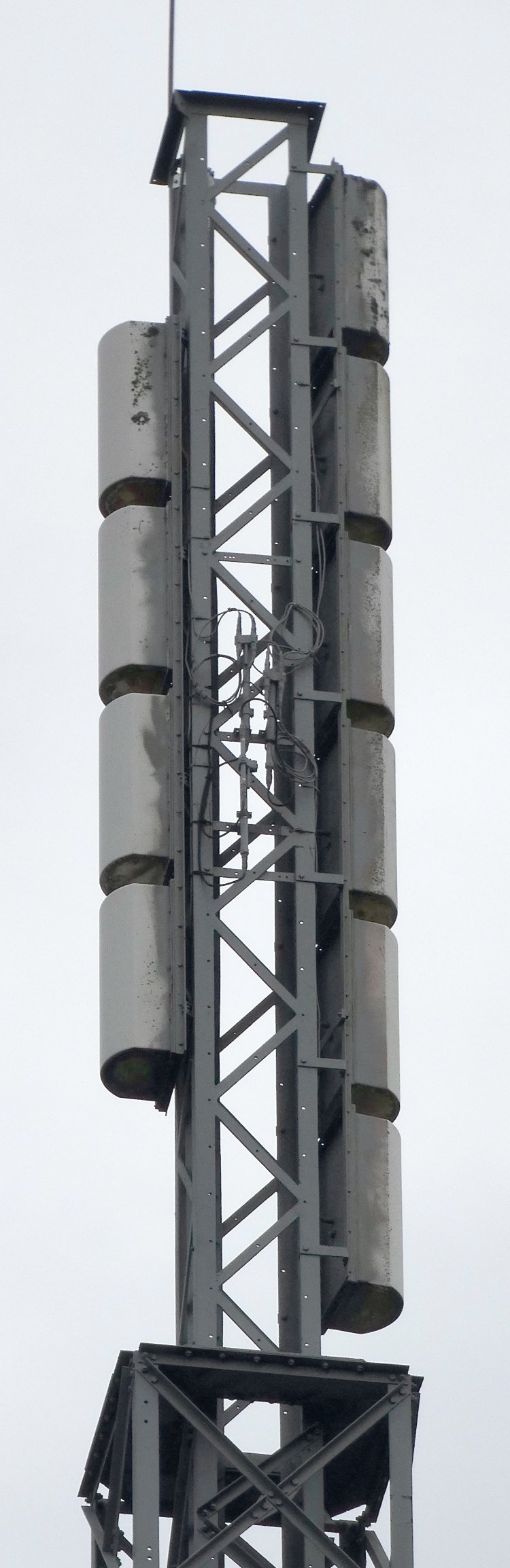

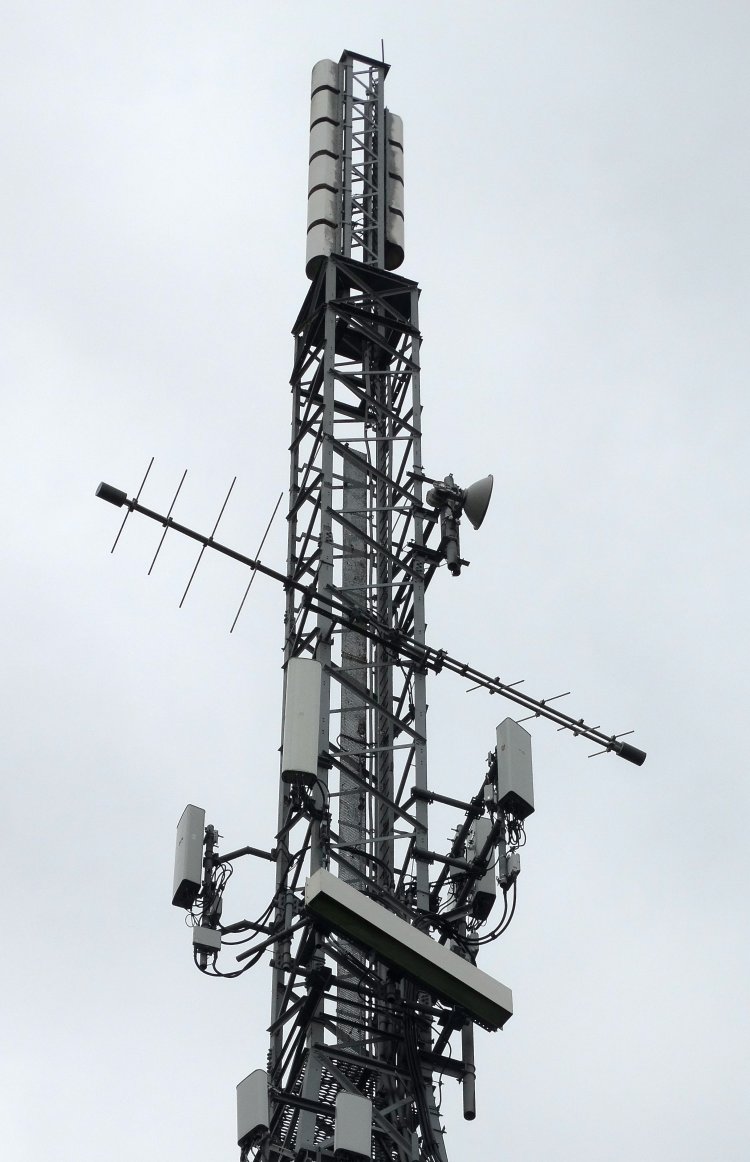

| No change to the band IV UHF transmit panels. The 6 tiers face roughly south. The 4 tiers face north. |

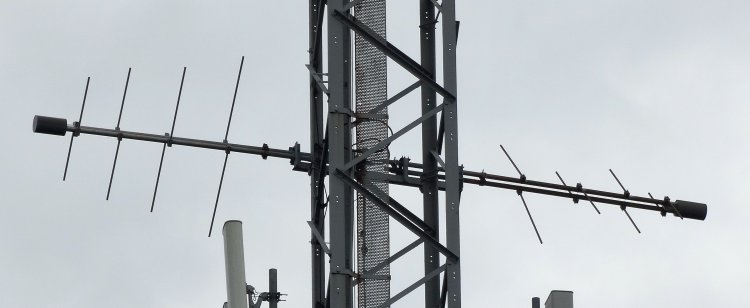

| FM radio transmit is from these two band II log periodics which point roughly north and South. |

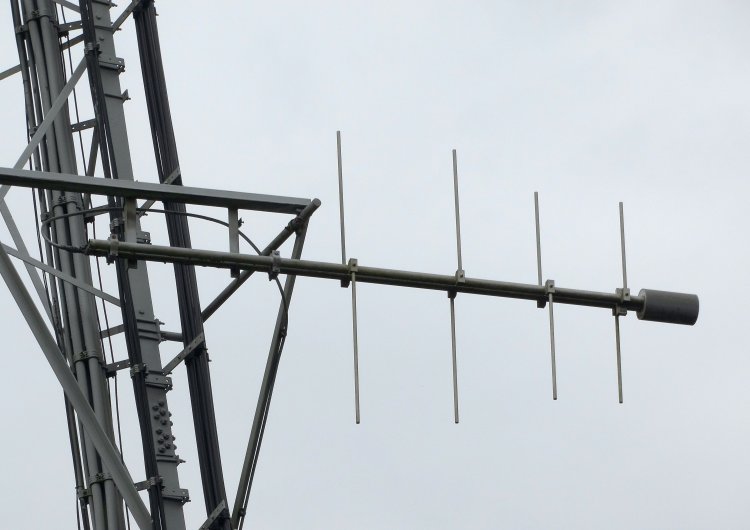

| FM radio receive on Blaenplwyf |
| |
