Stewart Park Court NGR: NJ917082 Maps: Google  Bing (Ord Surv)   Site Height: 94m       Structure Height: Digital TV: National Radio: Local Radio: ShmuFM: 99.8   Digital Radio: Comments:

Show historic services
May 2017

The name shmu FM derives from the historical use of the station's studio site - the Station House at Woodside. (The railway line remains in use but the station closed to passenger traffic in 1937.) The station has been on-air since October 2007. During three days spent in the area there was an eclectic mixture of output. shmuFM's transmit site is approximately 700 m east of BT Granite Hill which was the original site for ILR station Northsound and the highest point in the built-up area of Aberdeen.

For a change we'll start at the studio site...

...there's a Band I link it seems. The transmitter site is about 1 km away.

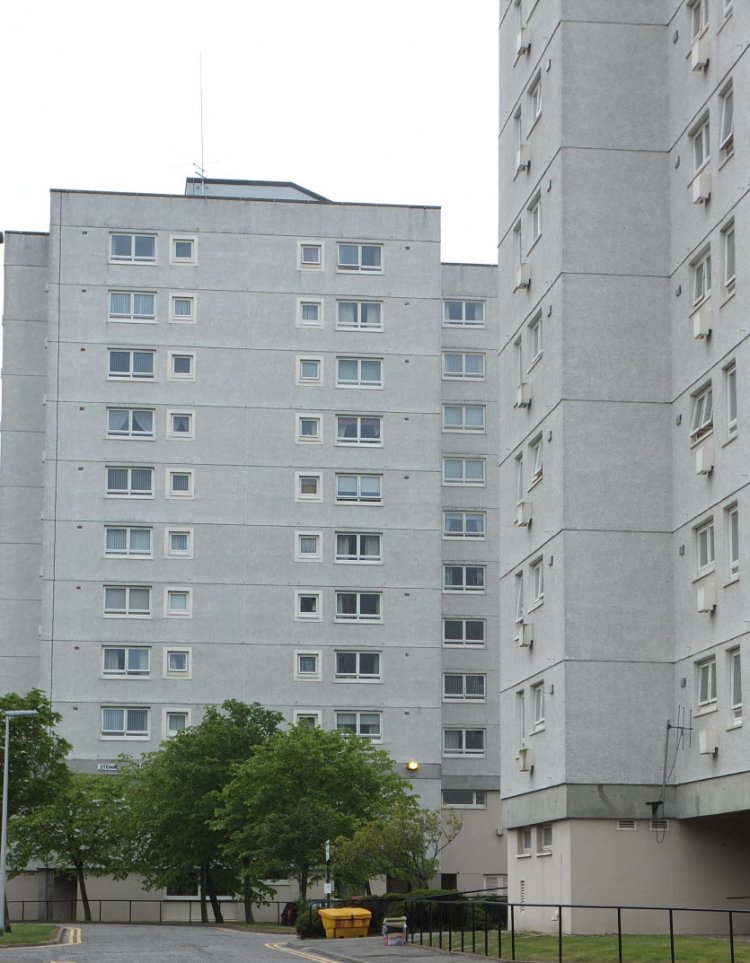

Stewart Park Court is on the left, constructed in the late 1970s. Ofcom puts the site at 94 m and the antenna at 48 m above ground.

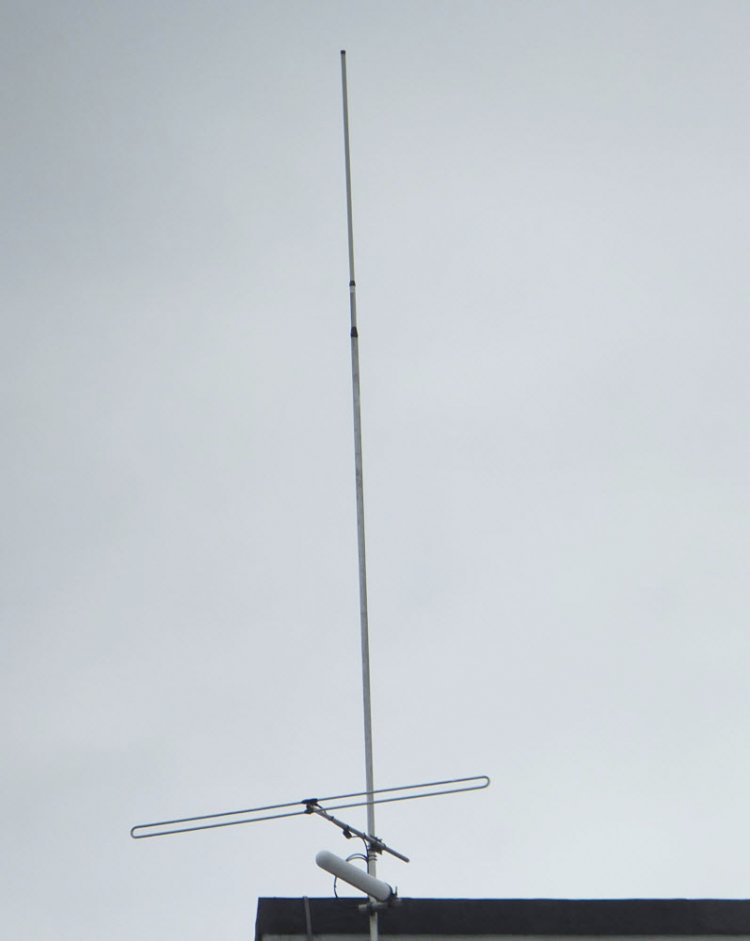

The transmit antenna appears to be a JayBeam end-fed type mounted on a relatively long pole. The SHF link yagi is a bit of a mystery.

Granite Hill

shmuFM History
