THE TRANSMISSION GALLERY

Caldbeck

Cumbria

NGR: NY299425	Maps: Google Bing (Ord Surv)		Site Height: 289m		Structure Height: 338.3m
Digital TV:	BBC A: 25/27	D3&4: 28/24	BBC B: 22/21	SDN: 23	Arq A: 26	Arq B: 30
	Local Mux: 33 and 29
National Radio:
Local Radio:	Greatest Hits Radio (Cumbria): 96.4
Digital Radio:	Digital One: 11D	North Cumbria: 11B
Comments:	Broadcasts English PSB muxes on 25/28/22, Scottish PSB muxes on 27/24/21 (directional aerial). Pre B700 allocations: 25/28/30 + 27/24/22 & 23/26/29 & 32/35/56. COM 7 and 8 ceased at B700. Local MUX broadcast on both ch 29 (southerly direction) and ch 33 (north and east directions).

Show historic services

	2001 Photos by Peter Bigwood
	June 2007 - Work on the new mast begins Photos by Tim Fox

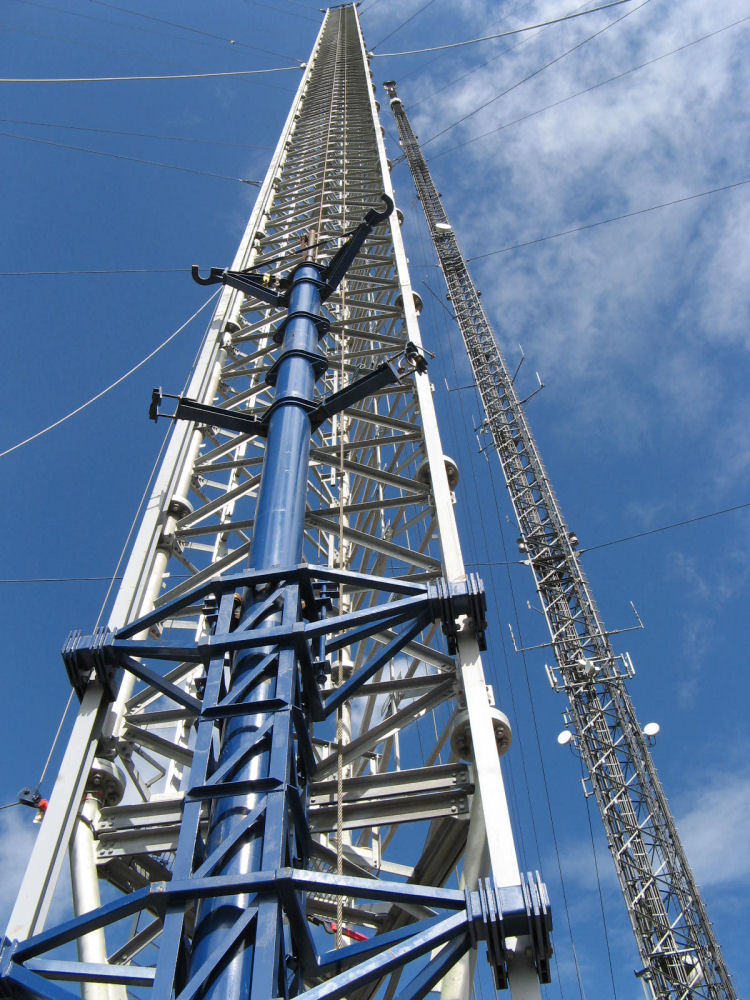

	Late Summer 2007 - More of the new mast Photos by Rod Paton and David Dolman
	August and September 2007 Photos by Max Eaves and Bill Wright

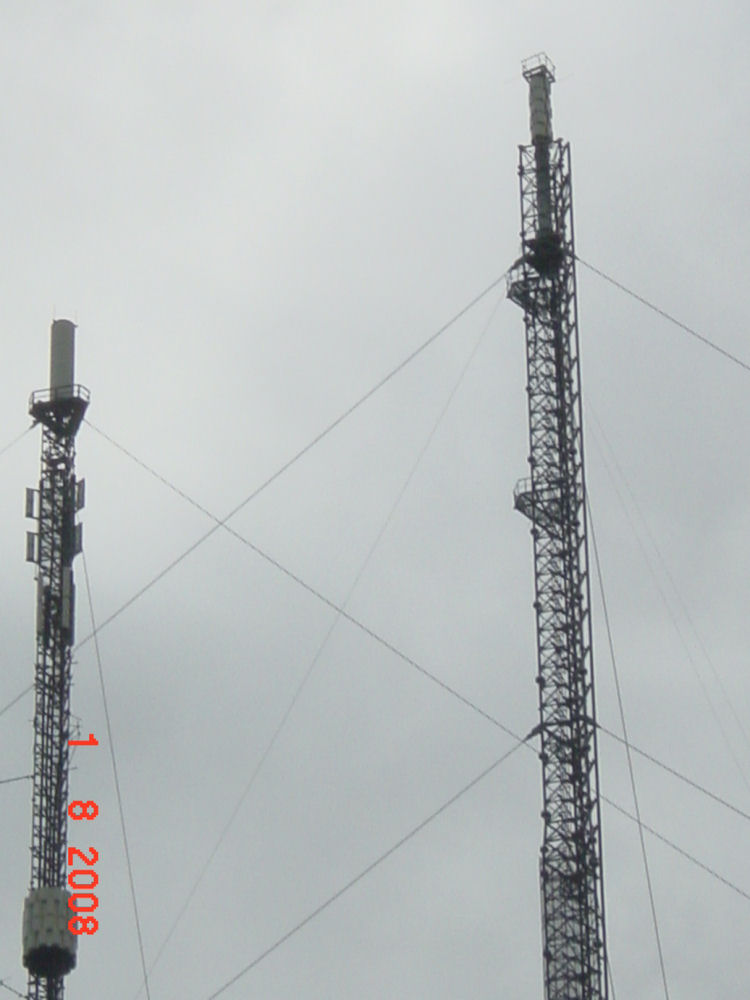

	August 2008 Photos by Peter Warner and Rod Paton
	October 2011 Photos by Anne and Nigel J. Coote
	December 2012 - Analogue mast removed Photos by John Smith
	Local TV added - June 2021 Photos by Martin Brown
	Feature: Caldbeck - 405 line Band III information ITV VHF service area
	Coverage area map UHF Post-DSO Digital TV
